CNC Cabinet Making Machine: The Best CNC Solutions for Your Cabinetry Needs

A CNC cabinet making machine is an automated, computer-controlled router or nested-based manufacturing system designed to precisely cut, drill, groove, and edge-shape engineered panels—such as plywood, MDF, particleboard, and solid wood—into accurate cabinet components with minimal manual intervention, high repeatable tolerances, and maximum material utilization.

At a Glance

What is a CNC Cabinet Making Machine?

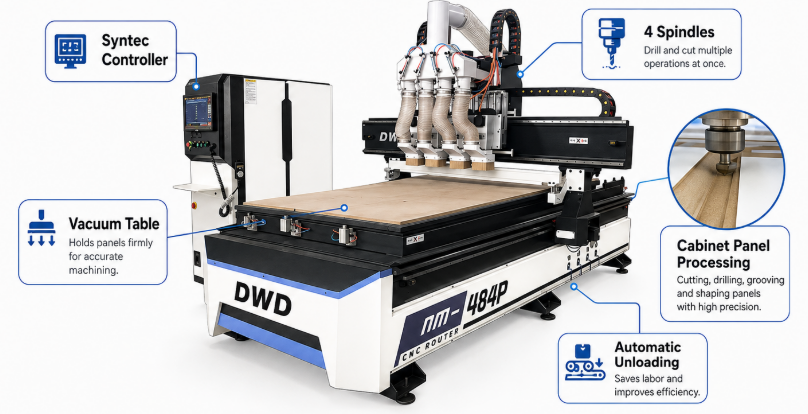

A CNC cabinet making machine is a specialized industrial computer-controlled gantry router engineered for high-speed cutting, drilling, pocketing, and profiling of sheet materials used in structural carcass and face-frame furniture construction.

At its core, modern cabinet manufacturing relies on converting digital three-dimensional cabinet designs into exact toolpaths executed across rigid machine axes. Industrial cabinet making machinery utilizes a heavy-duty steel base framework, precision linear motion guides, helical rack-and-pinion or ball-screw transmissions, and high-frequency electrospindles. These components allow the router bits to engage panel goods—such as melamine-faced chipboard (MFC), medium-density fiberboard (MDF), solid core plywood, and high-pressure laminates—at rapid feed speeds while maintaining sub-millimeter tolerances. The transition from legacy manual cutting equipment to automated numerical control establishes a centralized, digital production workflow where a single operator can process dozens of fully customized sheets per shift.

Beyond basic linear sizing, modern cabinet CNC machinery incorporates versatile multi-tool configurations. Integrated automatic tool changers (ATC) with disc or linear tool magazines allow seamless switching between rough profiling tools, fine finishing end mills, dovetail bits, 32mm system drill bits, and specialized lock-dowel groovers within seconds. Coupled with multi-zoned high-vacuum table systems, the workpiece remains rigidly immotile during heavy milling operations, eliminating vibration-induced chatter and edge chipping. Consequently, cabinet components exit the CNC nesting process with factory-grade edge quality, perfectly aligned shelf pin holes, precise dado joints, and pre-drilled hardware positions ready for immediate edgebanding and final assembly.

Understanding CNC Technology in Cabinet Making

The operational dynamic of a CNC cabinet processing system is anchored in computer numerical control architecture, which translates digital CAD (Computer-Aided Design) geometry into precise G-code machine instructions. In cabinet making, dedicated CAM (Computer-Aided Manufacturing) nesting engines analyze complete cabinet assemblies, automatically breakdown the structure into individual structural panels (sides, tops, bottoms, shelves, back panels, and drawer boxes), and arrange these parts onto standard raw material sheets. This algorithmic placement optimizes sheet space, drastically reducing offcut waste. The controller then coordinates the high-speed motion of the X, Y, and Z axes, adjusting feed speeds and spindle RPM dynamically based on material density, tool diameter, and cutting depth to ensure clean cuts without panel burning or tool deflection.

Benefits of Using CNC Machines for Cabinet Production

Adopting CNC machinery in cabinet production offers three key operational advantages: material efficiency, labor optimization, and quality standardisation. First, computerized nesting algorithms achieve material yield rates exceeding 90 percent, dramatically outperforming manual cutting layouts on sliding table saws. Second, the consolidation of sizing, boring, grooving, and routing into a single setup reduces manual handling, enabling a single technician to oversee multi-sheet runs that previously required multiple machine operators. Third, digital execution eliminates human transcription errors and manual measurement drifts, guaranteeing that every panel component fits perfectly during assembly with zero field re-work.

Cabinet Making Machine Technical Specifications Matrix

Maintenance Tip: Vacuum System Seal Integrity and Pump Filtration: To ensure maximum panel hold-down force and prevent part slippage during high-speed nesting passes, inspect the rubber gasket seals embedded within the aluminum matrix table every week. Clean the vacuum pump intake filters daily using compressed air to eliminate ambient wood dust accumulation. Clean filters maintain optimal negative suction pressure (minimum -0.08 MPa), ensuring small cabinet backs and narrow drawer sides stay securely anchored during aggressive tool engagement.

Why Choose a CNC Router for Cabinet Making?

Choosing a dedicated CNC router for cabinet making provides superior manufacturing flexibility, automated nested-based processing, single-pass machining versatility, and higher overall operational throughput compared to legacy panel saws.

While traditional woodworking machinery like beam saws and sliding table saws excel at straight-line ripping, they are inherently limited when processing complex cabinet joinery, curved components, blind dadoes, and custom hardware patterns. A heavy-duty flatbed CNC router integrates nested-based manufacturing (NBM), combining cut-to-size operations with vertical drilling, pocketing, shelf-pin indexing, and decorative contouring in one continuous handling cycle. The machine holding bed acts as a multi-zone vacuum chamber, securing large raw sheets directly on a disposable MDF spoilerboard. This setup eliminates the need for manual clamping, component layout marking, or secondary transfers to line boring machines.

Furthermore, integrating advanced nesting CNC machinery allows cabinet makers to accept highly customized architectural contracts without sacrificing production speed. Whether fabricating standard frameless Euro-style cabinets, traditional face-frame units, intricate commercial fixtures, or bespoke radius cabinetry, the CNC router executes geometric adjustments instantly via updated software files. This digital flexibility eliminates machine downtime associated with physical tool adjustments, fence setting, or jig alignment, allowing shop managers to run mixed-batch production, single-piece custom orders, or high-volume standardized cabinet runs with equal efficiency.

Advantages of CNC Routers in a Cabinet Shop

1. Integrated Single-Setup Processing: A nested-based CNC router performs outer boundary contouring, internal cutout pocketing, hinge hole boring, and dados in a single sheet clamping cycle, eliminating material handling between separate saws and boring stations.

2. Optimized Material Yield: Advanced vector-nesting algorithms place irregularly shaped components and structural panels tightly together across the sheet, reducing raw sheet consumption and scrap disposal overhead.

3. Automated Tooling Integration: Equipped with high-speed tool changers and dedicated drill banks, the system automatically selects optimal cutting parameters for every operation, maximizing tool life and edge finish quality.

4. Seamless Digital Integration: Direct connectivity with mainstream cabinet design software ensures instant translation of customer-approved 3D models into accurate machine G-code without manual layout entry.

Comparing CNC Routers for Cabinetry Projects

Best CNC Router Machines for Custom Cabinets

Selecting the optimal CNC router for custom cabinet manufacturing requires evaluating structural frame weight, spindle rating, drive system precision, controller stability, and expandable automation features. Heavy-duty steel gantry architectures with stress-relieved bed structures are crucial to absorb operational vibrations and maintain sub-millimeter positional repeatability over long shifts. For high-throughput workshops requiring automated material handling, integrated loading and unloading tables combined with automatic panel alignment pins significantly shorten cycle times.

To achieve continuous industrial production, cabinet workshops frequently invest in specialized equipment like an industrial nesting cabinet CNC router, which combines high-power main spindles with multi-drill boring heads and integrated pusher systems. Such configurations allow automatic unloading of finished cut panels onto a conveyor table while simultaneously cleaning the vacuum bed and positioning the next raw sheet. Evaluating spindle power—typically selecting 9.0kW air-cooled units or higher—ensures smooth, single-pass processing through 18mm or 25mm dense panel stock without feed rate degradation or tool deflection.

Operational Principle: Spindle Torque Dynamics and Chip Load Optimization: High-efficiency panel nesting relies on maintaining optimal chip load to prevent heat build-up and premature bit dulling. Chip load is defined as:

$$\text{Chip Load} = \frac{\text{Feed Rate}}{\text{Spindle RPM} \times \text{Number of Flutes}}$$

Maintaining a chip load between 0.4mm and 0.6mm per tooth when cutting double-sided laminated particleboard ensures efficient heat evacuation via wood chips rather than transferring friction to the carbide cutting edges. Balancing high feed speeds (up to 25 m/min) with appropriate electrospindle RPM (18,000 to 24,000 RPM) guarantees long tool life and clean, chip-free top and bottom laminate surfaces.

How to Automate Your Cabinet Production with CNC Machinery?

Automating cabinet production with CNC machinery involves integrating digital CAD/CAM software, high-rigidity CNC nesting hardware, automated material handling, standardized joinery techniques, and comprehensive operator training.

Transitioning a manual cabinet shop into an automated CNC production facility requires a systematic approach to workflow integration. Modern panel manufacturing relies on a synchronized digital pipeline where parametric cabinet designs instantly generate material cutting lists, hardware placement diagrams, cost estimates, and machine-ready G-code files. Removing manual layout and transcription steps dramatically speeds up order throughput while preventing costly manufacturing errors on the factory floor.

Successful automation extends beyond machine installation. It requires standardizing internal construction details, such as dowel spacing, shelf-pin offsets, blind dado tolerances, and back panel grooving dimensions. Integrating an automated CNC nesting machine for cabinetry establishes an efficient manufacturing hub. Modern automation accessories—such as scuff-free vacuum suction loaders, automatic label printers for part tracking, and integrated offloading pushers—allow a single operator to manage high-volume sheet processing effortlessly.

1. Define Your Production Requirements

Evaluate your target output volume, primary panel types (e.g., hardwood plywood, melamine, compact laminate), preferred cabinet construction styles (frameless European vs. face-frame), and factory floor footprint constraints. Calculating required daily sheet processing targets dictates whether your facility requires a standalone manual-load flatbed router or an automated cell featuring automatic loading and unloading conveyors.

2. Research CNC Machinery

Analyze structural weight, gantry construction, linear guide brand credentials, servo motor torque specifications, and vacuum pump displacement capabilities across potential equipment suppliers. Prioritize high-rigidity machine beds designed with stress-relieved welded steel frames, as structural stiffness directly influences cutting precision, edge quality, and long-term mechanical alignment under continuous industrial operation.

3. Evaluate Software Compatibility

Verify that your chosen parametric cabinet design software seamlessly exports post-processed toolpaths to the CNC machine controller. Flexible CAD/CAM integration ensures that parametric dimensions automatically update bit selection, feed rates, spindle speed rules, drilling sequences, and label data—including barcode indicators for downstream edgebanding operations—without requiring manual file adjustments.

4. Invest in Training

Execute thorough training programs for both CAD/CAM drafting specialists and machine operators. Technical instruction must cover machine safety protocols, vacuum table zone management, spoilerboard surfacing routines, tool wear monitoring, precision tool length setting, and basic preventative maintenance schedules to maximize machine uptime and processing safety.

5. Implement a Testing Phase

Conduct controlled test runs using sample panel stock to fine-tune tool cutting speeds, check joinery fit tolerances (such as blind dado clearances and dowel pin hole tightness), verify label scanning accuracy, and confirm dust extraction effectiveness. Fine-tuning these parameters during a pilot phase prevents material waste and operational delays prior to launching full-scale production.

CNC Cabinet Automation Deployment Checklist

Maintenance Tip: Linear Guide Lubrication and Drive Rack Calibration: Maintain positioning precision and prolong mechanical service life by ensuring automatic central lubrication reservoirs are supplied with recommended lithium-based grease. Inspect and clean X/Y-axis helical rack-and-pinion systems weekly to clear fine wood dust and debris. Check mechanical backlash on all linear axes quarterly using a digital dial indicator to preserve consistent sub-millimeter positioning accuracy across large panel nested runs.

Conclusion and Strategic Summary

Transitioning to automated panel processing with a high-performance CNC cabinet making machine represents a transformative upgrade for millwork manufacturers and commercial cabinet shops. Consolidating sizing, profiling, joinery routing, and vertical drilling into a unified digital workflow significantly elevates production speed, maximizes raw material yield, and eliminates assembly bottlenecks caused by manual dimensional errors. Incorporating a dedicated CNC router for custom cabinet making establishes a flexible, future-proof manufacturing foundation capable of scaling alongside evolving market demands and complex architectural projects.

By pairing robust machine hardware—featuring high-power electrospindles, intelligent multi-zone vacuum beds, and rapid automatic tool changers—with advanced parametric cabinet software, manufacturers can operate at peak efficiency. Emphasizing systematic operator training, preventative maintenance, and optimized tooling parameters ensures sustained dimensional precision, low operational costs, and maximum return on investment for years to come.
