Views: 0 Author: Site Editor Publish Time: 2025-10-10 Origin: Site
Imagine a world where precision meets efficiency in manufacturing. CNC Drilling Machines revolutionize this by creating exact holes in diverse materials. These machines are crucial in industries like aerospace and automotive, where precision is paramount. In this post, you'll learn about CNC Drilling Machines, their significance in modern manufacturing, and the key features to consider when choosing one.

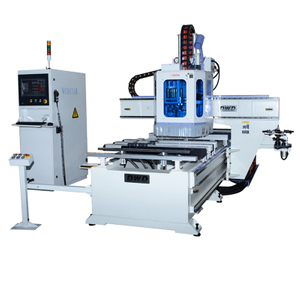

CNC drilling machines are automated tools designed to create precise holes in various materials. They use computer numerical control (CNC) to guide a rotating drill bit that advances into a stationary workpiece. The CNC system reads digital instructions, positioning the drill bit exactly where holes are needed, controlling depth and speed for accuracy. This automation reduces human error and improves repeatability in manufacturing.
Unlike manual drilling, CNC drilling can handle complex hole patterns, varying sizes, and depths with high precision. The process is essential in industries requiring tight tolerances and consistent quality, such as aerospace, automotive, and electronics manufacturing. The machine’s ability to execute programmed instructions ensures each hole meets design specifications without manual adjustments.
CNC drilling machines consist of several critical parts working together to perform precise drilling:
Rotating Cutting Tool (Drill Bit): The drill bit spins to cut into the workpiece, creating holes. Different bit types and sizes accommodate various materials and hole specifications.
Turret or Spindle: This holds the drill bit and rotates it at controlled speeds. Some machines feature turrets that can house multiple tools, enabling automatic tool changes during operations.
Workpiece Holder (Fixture or Clamp): It secures the material firmly in place, preventing movement during drilling to maintain accuracy.
CNC Control Unit: The brain of the machine, it interprets the programmed instructions (G-code) and controls the movement of the spindle and worktable across multiple axes.
Axes Movement System: Typically includes X, Y, and Z axes, allowing precise positioning of the drill bit relative to the workpiece. Some advanced machines offer additional axes for complex drilling angles.
Coolant System: Many machines include coolant delivery to reduce heat generated during drilling, prolonging tool life and improving hole quality.
Together, these components enable CNC drilling machines to perform fast, accurate, and repeatable hole-making operations across a wide range of materials and applications.
Tip: Ensure your CNC drilling machine has a robust fixture system to secure workpieces tightly, as even minor movement can compromise hole accuracy and quality.
CNC drilling machines come in several types, each designed for specific tasks and workpiece sizes. Understanding these types helps you choose the right machine for your manufacturing needs.
Vertical drilling machines feature a spindle that moves up and down vertically. The drill bit is mounted in this spindle, which advances straight into the workpiece. These machines are ideal for simple drilling tasks where holes need to be drilled perpendicular to the surface. They are common in workshops and small-scale production because of their straightforward design and ease of use.
Key advantages:
Easy setup and operation
Suitable for small to medium workpieces
Cost-effective for simple hole drilling
Horizontal drilling machines have a spindle oriented parallel to the worktable. This setup allows drilling along the horizontal axis, making them suitable for larger workpieces or components requiring multiple holes along different axes. The horizontal spindle provides better support for long drill bits and improves chip evacuation.
Applications include:
Large automotive parts
Heavy machinery components
Complex drilling patterns requiring multi-axis access
Multi-spindle machines have several spindles arranged on a turret or a fixed frame. They can drill multiple holes simultaneously, drastically increasing production speed. This type is especially useful for high-volume manufacturing where many identical holes are needed in each workpiece.
Benefits:
High throughput
Reduced cycle time
Consistent hole placement across multiple holes
Gantry type drilling machines are large, versatile systems designed to handle oversized or irregularly shaped workpieces. The gantry structure supports a movable drilling head that can travel over the workpiece, providing flexible positioning and multi-axis drilling capability. These machines excel in industries where large parts require precise hole placement.
Typical uses:
Aerospace components
Shipbuilding parts
Large structural assemblies
Tip: When selecting a CNC drilling machine type, consider your typical workpiece size, hole quantity, and complexity to ensure the machine matches your production demands efficiently.
Modern CNC drilling machines come packed with features designed to boost efficiency, precision, and versatility. Choosing the right machine means understanding these key features and how they impact your drilling operations.
The spindle is the heart of any CNC drilling machine. Modern machines use high-performance spindles capable of reaching speeds from 1,000 up to 20,000 RPM or more. These spindles maintain consistent torque at varying speeds, allowing smooth drilling through different materials. Some machines feature ceramic or hybrid bearings to reduce vibration and extend spindle life. Advanced spindle technology ensures high precision, reduces tool wear, and improves surface finish quality.
Automation is critical for maximizing productivity. CNC drilling machines now come with sophisticated control systems that interpret G-code instructions accurately and control multi-axis movements. These systems often include adaptive feed control, which adjusts feed rates in real time based on cutting conditions to prevent tool breakage. Integration with CAD/CAM software simplifies programming and allows complex drilling patterns to be executed with ease.
Adjustable spindle speed and feed rate are essential for optimizing drilling based on material type, drill bit size, and hole depth. Machines with a wide range of speed settings allow you to drill hard metals at slower speeds and softer materials at higher speeds. Similarly, variable feed rates help balance cutting forces and chip evacuation, improving hole quality and extending tool life.
Effective coolant delivery is vital to control heat generated during drilling, which can otherwise damage the tool and workpiece. Modern machines feature advanced coolant systems that provide high-pressure or flood coolant directly to the drill bit. Some systems offer programmable coolant flow rates synchronized with drilling cycles. This reduces thermal distortion, flushes chips efficiently, and prolongs tool life.
Automatic tool changers (ATC) are a major productivity booster. Machines equipped with ATC can switch drill bits or other tools without manual intervention, minimizing downtime between operations. Multi-tool turrets or magazines allow for a variety of drill sizes and types to be used in one program. This flexibility is especially useful for jobs requiring multiple hole diameters or secondary operations like countersinking.
User-friendly control panels make programming and operation more intuitive. Touchscreen interfaces with graphical displays allow operators to easily input parameters, monitor machine status, and troubleshoot issues. Some machines support remote monitoring and diagnostics, enabling faster response times and reducing downtime. Customizable interfaces can be tailored to operator preferences, improving workflow efficiency.
Tip: When selecting a CNC drilling machine, prioritize models with adaptive feed control and automatic tool changers to maximize efficiency and reduce manual setup time.
The CNC drilling process begins with designing and planning. This step involves creating a detailed CAD model of the part, specifying hole locations, sizes, and depths. The design must consider material properties and how the drill will enter and exit the workpiece. For example, the drill entry surface should be perpendicular to the drill bit to prevent misalignment and ensure hole accuracy. Planning also includes chip clearance, especially for threaded holes, to avoid clogging and tool damage. Proper planning reduces errors and improves efficiency during drilling.
After finalizing the design, the next step is programming the CNC machine. This involves converting the CAD model into G-code, which contains instructions the machine understands. The G-code specifies coordinates, spindle speeds, feed rates, and drilling depths. Advanced CAM software helps generate this code, allowing complex drilling patterns to be programmed easily. The program ensures the drill moves precisely to each hole location, drills at the correct speed, and follows the planned depth. Accurate programming is key to consistent hole quality and repeatability.
Setup involves preparing the CNC machine for drilling. The workpiece must be securely clamped to prevent movement during drilling, which can cause inaccuracies or damage. The appropriate drill bit is installed based on hole size and material type. Machine settings such as spindle speed and feed rate are configured to match the programmed instructions. Once setup is complete, the machine executes the drilling operation automatically. It moves the drill bit to each position and drills holes with exact depth and angle. Automation reduces human error and speeds up production.
After drilling, quality control ensures holes meet required tolerances and finish standards. Inspection tools like coordinate measuring machines (CMM) or optical comparators check hole diameter, depth, and position. Surface finish and straightness are also evaluated. If defects or deviations are found, adjustments can be made to the program or setup for future runs. Consistent quality control maintains product reliability and prevents costly rework. Proper evaluation confirms the drilling process has produced parts that meet design specifications.
Tip: Always verify drill bit compatibility and machine parameters during setup to prevent tool breakage and ensure precise hole quality.
Designing parts for CNC drilling needs careful planning to ensure smooth, accurate hole-making. Here are some practical tips:
Perpendicular Entry and Exit Surfaces: Make sure the drill enters and exits the material at right angles. This avoids misalignment and prevents drill bit breakage at the exit point.
Avoid Interrupted Cuts: If the drill passes through an opening or slot, it can cause deflection and damage. Keep the drill path continuous and fully supported by material.
Minimize Hole Count from Multiple Sides: Design so all holes can be drilled from one side whenever possible. This reduces setup time and tooling complexity.
Standardize Hole Sizes: Use common hole diameters and thread sizes to reduce tool changes and speed up production.
Allow Clearance for Tool Access: Leave enough room around holes for the drill bit and holder. For example, maintain at least 12 mm from hole center to nearby walls or edges.
Avoid Intersecting Holes: Overlapping drilled or reamed holes cause tool breakage and burr issues. Keep holes spaced apart.
Limit Thread Length: Only make threads as long as needed. The first few pitches carry most of the load, so extra thread length adds little strength but increases machining time.
Hole quality depends on several factors beyond just design:
Hole Straightness: For critical holes, avoid interrupted cuts or changes in material thickness along the drilling path. Keep drill centered throughout.
Chip Clearance: Through holes are better than blind holes for chip evacuation, especially when tapping or reaming follows drilling.
Drill Point Shape: Blind holes should have a standard drill point shape (usually 118° or 140°) to avoid flat bottoms that cause tool wear.
Hole Depth: Avoid holes deeper than 8 times the diameter unless specialized deep-hole drills are used. Deep holes risk chip clogging and deviation.
Small Hole Size Limits: Holes smaller than about 3 mm diameter are prone to drill bit breakage and should be avoided unless absolutely necessary.
Choosing the right drill bit and material pairing is key to good results:
Match Drill Bit to Material: Use bits designed for the workpiece material—high-speed steel for soft metals, carbide for hard metals, and cobalt or coated bits for stainless steel.
Use Coolant Systems: Proper coolant reduces heat, prolongs tool life, and improves hole finish.
Tool Rigidity: Choose drill bits with good rigidity to avoid bending or vibration, which cause poor hole quality or breakage.
Consider Coatings: Coated drill bits (like TiN or TiAlN) reduce friction and wear, especially useful for abrasive or hard materials.
Tool Diameter and Length: Use the shortest drill bit possible for the hole depth to improve stability and accuracy.
Tip: Always design holes so the drill bit can enter and exit perpendicular to the surface, minimizing deflection and improving hole accuracy.
CNC drilling machines play a vital role across various industries by providing precise, efficient hole-making capabilities. Their accuracy and automation make them indispensable in sectors where tight tolerances and consistent quality are critical. Below, we explore key industries that rely heavily on CNC drilling technology.
The automotive sector demands high precision and repeatability for components like engine blocks, transmission housings, and chassis parts. CNC drilling machines help create exact holes for fasteners, oil passages, and mounting points. Their ability to drill multiple holes quickly with consistent quality reduces production time and cost. Moreover, CNC drilling supports complex hole patterns required in modern car designs, improving vehicle performance and safety.
Applications include:
Drilling holes for bolts and screws in engine assemblies
Creating oil and coolant channels in engine blocks
Manufacturing suspension and chassis components
Aerospace manufacturing requires extremely tight tolerances and impeccable hole quality to ensure safety and performance. CNC drilling machines are essential for producing airframe components, turbine blades, and structural parts. They handle materials like aluminum alloys, titanium, and composites, which are common in aerospace. The machines’ precision minimizes material stress and defects, critical for parts exposed to extreme conditions.
Typical uses involve:
Drilling holes for rivets and fasteners in aircraft fuselage
Creating cooling holes in turbine blades
Manufacturing complex structural components with multi-axis drilling
In electronics, CNC drilling machines create precise holes in printed circuit boards (PCBs) and electronic enclosures. The holes allow for component leads, vias, and mounting hardware. Given the small scale and high volume of electronic parts, CNC drilling machines with automatic tool changers and rapid cycle times are preferred. They ensure accuracy and repeatability, crucial for reliable electronic devices.
Common applications include:
Drilling holes for through-hole components on PCBs
Creating mounting points in electronic housings
Manufacturing connectors and sockets
Tip: When selecting CNC drilling equipment for your industry, consider the material types and hole complexity your applications require to ensure optimal machine performance and longevity.
CNC drilling machines offer advanced spindle technology, automated control systems, and efficient coolant systems, ensuring precision and efficiency. Future trends include enhanced automation and integration with CAD/CAM software for improved productivity. DWD MECHATRONICS provides cutting-edge CNC drilling solutions, delivering exceptional value through innovative features and reliable performance. Their products are designed to meet the demanding needs of various industries, ensuring high-quality output and operational efficiency.
A: A CNC Drilling Machine is an automated tool that uses computer numerical control to create precise holes in various materials, ensuring high accuracy and repeatability in manufacturing processes.
A: A CNC Drilling Machine works by reading digital instructions to position a rotating drill bit accurately, controlling its depth and speed to create holes in a stationary workpiece.
A: CNC Drilling Machines are used in the automotive industry for their ability to produce precise holes quickly, which is essential for components like engine blocks and chassis parts.
A: Benefits of using a CNC Drilling Machine include increased precision, reduced human error, improved repeatability, and the ability to handle complex drilling patterns efficiently.
A: CNC Drilling Machines offer higher precision, the ability to execute complex hole patterns, and increased efficiency compared to manual drilling, reducing the need for manual adjustments.
