Imagine crafting intricate parts with pinpoint precision. That's the power of CNC machining. But how do you choose between CNC milling and a CNC drilling machine? Selecting the right process is crucial for efficiency and cost-effectiveness. In this post, you'll learn the differences, advantages, and applications of CNC milling and drilling, helping you make an informed decision.
CNC milling is a precise machining process that uses rotating cutting tools to shape a workpiece. The machine follows digital instructions, usually in G-code, to control tool movement. This automation ensures each part matches the design exactly. The milling tool spins while moving across multiple axes—usually X, Y, and Z—allowing it to cut complex shapes and surfaces.
During milling, the tool removes material by feeding into the workpiece at controlled speeds and depths. The tool's multi-axis movement enables it to create intricate designs, including slots, pockets, and contours. The workpiece is securely clamped on the machine table, and the tool moves either horizontally, vertically, or both to achieve the desired shape.
CNC milling stands out for its versatility. It can handle various materials, including metals (steel, aluminum, titanium), plastics, composites, and even some ceramics. The process can produce parts ranging from simple flat surfaces to highly complex geometries with tight tolerances.
Industries relying on CNC milling include:
Aerospace: Crafting engine components, airframe parts, and turbine blades.
Automotive: Manufacturing engine blocks, transmission cases, and custom parts.
Medical: Producing surgical instruments, implants, and prosthetics.
Tooling and Mold Making: Creating precision molds and dies.
Prototyping: Rapidly producing functional prototypes with high detail.
CNC milling machines can perform multiple operations such as cutting, drilling, and engraving, reducing the need for multiple setups.
High Precision and Repeatability: CNC milling delivers consistent parts with tolerances often within ±0.005 inches (0.127 mm).
Complex Geometry Capability: Multi-axis tool movement allows machining of intricate shapes and fine details.
Material Versatility: Can machine a wide range of materials, including hard metals and composites.
Automation Reduces Errors: Computer control minimizes human error, enhancing quality.
Smooth Surface Finish: Milling can achieve fine surface finishes, often reducing the need for additional polishing.
Scalability: Suitable for both small batch prototyping and large-scale production.
Despite these advantages, CNC milling requires significant initial investment in equipment and tooling. Tool changes during complex jobs can increase downtime, and the process may generate more waste material compared to other methods.
Tip: When selecting CNC milling for your project, consider the complexity and material type to optimize tool selection and machining parameters for the best precision and surface finish.

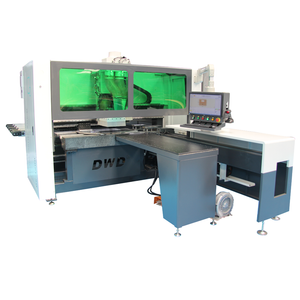

CNC drilling is a computer-controlled machining process designed specifically to create precise holes in a workpiece. Unlike milling, which shapes the entire surface, drilling focuses on removing material by advancing a rotating drill bit straight into the material, typically along the vertical axis (Z-axis). The machine follows a digital program, usually G-code, that guides the drill bit to exact locations, depths, and angles.
The process begins by securing the workpiece firmly on the machine table. The CNC controller then positions the drill bit over the target spot. Once aligned, the drill bit spins at high speed and feeds into the material, cutting a clean hole. The machine can perform various drilling operations such as spot drilling, countersinking, counterboring, tapping, and reaming, depending on the tool and program used.
CNC drilling excels in producing consistent, accurate holes quickly and efficiently. It can drill holes ranging from very small diameters (a few millimeters) to larger sizes (several centimeters) and depths up to several meters, depending on the machine and tooling.
Common materials drilled include:
Metals like steel, aluminum, brass, and stainless steel
Hardened plastics such as polycarbonate and PEEK
Some composites
Industries that rely heavily on CNC drilling include:
Electronics: Drilling precise holes in circuit boards for component placement
Automotive: Creating holes for fasteners and assemblies in engine blocks and frames
Aerospace: Producing holes in airframes and turbine components for fasteners and rivets
Mechanical Engineering: Fabricating parts requiring threaded or smooth holes for assembly
CNC drilling machines can be simple vertical drills or more complex multi-spindle or gantry systems, allowing high-volume production and flexibility.
High Precision: CNC drilling achieves tight tolerances, often within ±0.002 inches (0.05 mm), ensuring consistent hole size and placement.
Speed and Efficiency: Drilling is faster than milling for hole creation, especially in large quantities or repetitive tasks.
Cost-Effective: Due to its focused operation, CNC drilling typically costs less than milling for hole-making projects.
Versatility in Hole Types: Can create a variety of holes including straight, tapered, countersunk, counterbored, and threaded holes.
Automation Reduces Errors: Computer control minimizes human error, improving quality and repeatability.
Tooling Flexibility: Various drill bits and attachments allow drilling in different materials and hole specifications.
However, CNC drilling is limited to hole-making and cannot create complex shapes or surface features. It also struggles with very hard materials that require specialized tooling or processes.
Tip: When planning CNC drilling, ensure the drill entry and exit surfaces are perpendicular to the drill bit to avoid inaccuracies and tool damage.
CNC milling and drilling both use computer-controlled machines but differ greatly in how they shape materials. Milling involves a rotating cutting tool moving across multiple axes—usually X, Y, and Z—to remove material from the surface. This multi-axis movement lets it create complex shapes, contours, and even perform drilling tasks.
Drilling, however, focuses solely on making holes. The drill bit spins and moves primarily along the vertical (Z) axis to cut straight into the material. The motion path is simpler and more linear compared to milling’s versatile movements.
In summary:
Milling: Multi-axis movement, shaping surfaces and edges.
Drilling: Primarily vertical motion, creating cylindrical holes.
Both processes offer high precision but serve different purposes. Milling can achieve tolerances around ±0.005 inches (0.127 mm), suitable for detailed and complex parts. Its ability to move tools in multiple directions allows for intricate designs and fine surface finishes.
Drilling often achieves even tighter tolerances, sometimes as precise as ±0.002 inches (0.05 mm), but only for hole diameters and placement. It excels in producing consistent, clean holes quickly, including specialized hole types like countersinks or tapped holes.
Capability-wise:
Milling handles complex geometries and surface features.
Drilling specializes in precise hole creation, including deep or threaded holes.
Both processes work on a wide range of materials, including metals, plastics, and composites. Milling generally handles harder materials better, such as titanium, tungsten, and certain ceramics, thanks to its versatile tooling and cutting strategies.
Drilling has some limitations with very hard materials. It struggles with hardened steels or tough alloys unless specialized drill bits and techniques are used. Also, drilling requires careful consideration of chip clearance and heat management to avoid tool wear or damage.
Common materials for each:
| Material Type | CNC Milling | CNC Drilling |
|---|---|---|
| Steel | Yes | Yes |
| Aluminum | Yes | Yes |
| Titanium | Yes | Limited |
| Hardened Steel | Yes | Difficult |
| Plastics | Yes | Yes |
| Composites | Yes | Yes |
| Ceramics | Some types | Limited |
Tip: When deciding between CNC milling and drilling, consider the complexity of shapes and hole requirements, as well as material hardness, to select the process that best matches your project’s precision and capability needs.
CNC milling uses a variety of cutting tools, each designed for specific tasks. The most common are:
End Mills: These are the primary tools for milling. They cut in all directions and come in different shapes, such as flat, ball-nose, or corner-radius. End mills handle most milling tasks, from slotting to contouring.
Face Mills: Used for removing large surface areas quickly, face mills have multiple cutting edges and are ideal for flattening or smoothing surfaces.
Drill Bits: Although milling machines can perform drilling, specialized drill bits are used when creating holes during milling operations.
Fly Cutters: These are single-point tools used for finishing large flat surfaces with a smooth finish.
Tool selection depends on material type, desired surface finish, and geometry complexity. Coatings like TiN or TiAlN improve tool life and performance, especially on harder materials.
CNC drilling primarily uses drill bits designed for hole-making. Key types include:
Twist Drills: The most typical drill bits, used for general-purpose drilling in metals, plastics, and composites.
Center Drills: Short and rigid, used for creating a starting point to guide larger drills and prevent wandering.
Countersinks and Counterbores: Used to create conical or flat-bottomed recesses, allowing fasteners to sit flush or below the surface.
Taps: For cutting internal threads after drilling a hole.
Gun Drills and Parabolic Flute Drills: Specialized tools for deep hole drilling, designed to evacuate chips efficiently and maintain hole straightness.
Tool choice depends on hole size, depth, material hardness, and hole type (e.g., threaded or smooth).
Proper setup is crucial for both milling and drilling to ensure accuracy and efficiency:
Workpiece Fixturing: Secure clamping prevents movement during machining. Milling often requires more complex fixtures due to multi-axis tool movement, while drilling setups focus on precise positioning for hole locations.
Tool Calibration: Tools must be measured and calibrated for length and diameter to maintain tight tolerances. Automatic tool changers in CNC machines speed up this process.
Machine Alignment: Ensuring the machine axes and spindle are properly aligned reduces errors. For drilling, the drill bit must be perfectly perpendicular to the workpiece surface unless angled holes are required.
Coolant Use: Both processes benefit from coolant or lubrication to reduce heat, improve tool life, and enhance surface finish.
Program Verification: Running simulations or dry runs helps detect possible collisions or errors before actual machining.
Setup time varies: milling setups tend to be longer due to tool changes and complex tool paths, while drilling setups are generally quicker, especially for repetitive hole patterns.
Tip: Always verify tool condition and alignment before starting CNC milling or drilling to avoid costly errors and ensure the highest precision.
CNC milling tends to be more expensive than drilling due to several factors. First, the complexity of milling operations requires advanced multi-axis machines and varied tooling, which raises equipment and maintenance costs. Milling tools such as end mills and face mills often wear faster, especially when machining hard materials, adding to tooling expenses.
Setup time for milling is typically longer. It involves precise fixture design and multiple tool changes to handle different cuts. This setup complexity increases labor costs and machine downtime. Additionally, milling generates more material waste since it removes large amounts of material to shape parts, which can increase raw material costs.
Production speed also affects cost. Milling intricate parts takes more time than drilling holes, leading to higher hourly machine costs. However, milling can perform multiple operations in one setup, potentially saving costs on secondary processes.
CNC drilling is generally more cost-effective for hole-making tasks. The machines and tooling are simpler, leading to lower initial investment and maintenance costs. Drill bits are usually less expensive and easier to replace than milling cutters.
Setup times are shorter since drilling focuses on repetitive hole patterns, often requiring fewer tool changes and simpler fixturing. This efficiency reduces labor and machine downtime costs.
Material waste is minimal in drilling since it only removes material to create holes. The focused operation allows faster production rates, especially in high-volume runs, further lowering per-part costs.
However, drilling costs increase with hole depth, diameter, and complexity, such as threading or countersinking. Specialized drill bits and slower feed rates for hard materials may also raise costs.
Lead time varies significantly between milling and drilling. Milling projects usually take longer due to the complex tool paths and multiple machining steps. The need for careful setup, tool calibration, and potential secondary finishing operations extends turnaround time.
Drilling offers faster lead times since it involves straightforward, repetitive operations focused on hole creation. Quick setup and fewer tool changes speed up production, especially for parts requiring many holes.
That said, lead time depends on project specifics. Complex drilling jobs with deep or precision holes may take longer. Conversely, simple milling tasks with fewer features can have shorter lead times.
Tip: When managing budgets and schedules, choose CNC drilling for fast, cost-effective hole-making and CNC milling for complex shapes despite higher costs and longer lead times.
Choosing between CNC milling and CNC drilling depends largely on your project’s specific needs. Start by evaluating the part design:
Complexity of Geometry: Milling handles complex shapes, contours, and multiple features. Drilling focuses on holes only.
Number and Type of Holes: If your project mainly requires precise holes, drilling is the faster, more economical choice.
Tolerance and Surface Finish: Milling offers tight tolerances and smooth finishes on surfaces. Drilling provides high precision for holes but less surface refinement.
Material Type and Hardness: Milling machines can work with harder materials like titanium or hardened steel. Drilling may struggle or require special tools for these.
Part Size and Volume: Large volume hole drilling benefits from drilling machines’ speed. Complex, low-volume parts may be best milled.
Also consider secondary operations. Milling can perform multiple tasks in one setup, reducing handling. Drilling often requires additional machining for non-hole features.
Different industries favor one process over another based on their product demands:
Aerospace: Milling is preferred for complex airframe parts; drilling is vital for fastener holes.
Automotive: Milling creates engine blocks and housings; drilling handles assembly holes.
Electronics: Drilling is essential for precise holes in circuit boards.
Medical: Milling produces implants and surgical tools with intricate shapes.
Tooling and Mold Making: Milling shapes molds; drilling creates alignment or ejector pin holes.
Understanding your industry’s typical part requirements helps guide the choice.
Define your part’s critical features clearly.
Prioritize precision where it matters most: surfaces or holes.
Assess material compatibility and tooling availability.
Factor in cost and lead time constraints.
Consult with your CNC service provider to explore hybrid approaches combining milling and drilling.
When in doubt, prototype using milling for versatility, then optimize with drilling for production efficiency.
Remember, both processes complement each other. Selecting the right one maximizes quality, reduces cost, and improves turnaround.
Tip: Match your CNC process to the part’s key features—choose milling for complex shapes and drilling for precise holes—to ensure efficient, cost-effective production.
CNC milling and drilling are distinct processes with unique applications. Milling excels in creating complex shapes, while drilling is ideal for precise hole-making. Consider project needs, material compatibility, and industry requirements when choosing. DWD MECHATRONICS offers advanced CNC solutions, ensuring high precision and efficiency. Their expertise in both milling and drilling provides clients with cost-effective, tailored machining services.
A: A CNC Drilling Machine is a computer-controlled device used to create precise holes in various materials by spinning a drill bit along the vertical axis.
A: While a CNC Drilling Machine focuses on creating holes, a milling machine shapes surfaces and can perform complex operations across multiple axes.
A: Choose a CNC Drilling Machine for efficient, cost-effective hole-making, especially in high-volume or repetitive tasks.
A: Costs include machine and tool expenses, setup time, and material type, with drilling generally being more economical for hole-making than milling.
A: A CNC Drilling Machine can drill hard materials but may require specialized drill bits and techniques to avoid tool wear and ensure precision.
