CNC Routers for Cabinetry: Efficiency & Machine Selection

As a senior CNC machinery application engineer with over fifteen years on the factory floor, I have witnessed firsthand how precision panel processing transforms modern architectural woodwork and custom kitchen manufacturing. In high-volume cabinet production, profitability hinges on minimizing material yield waste, reducing cycle times, and maintaining exact squareness across thousands of melamine, MDF, and plywood panels. The shift from traditional panel saws to automated nesting CNC technology represents a fundamental leap in shop floor efficiency. However, selecting the right machinery requires a clear understanding of dynamic gantry stability, vacuum zone distribution, dynamic spindle torque curves, and automatic tool changer configurations. In this comprehensive guide, I share technical insights into the mechanical engineering, selection criteria, and operational strategies necessary to maximize your return on investment when implementing CNC Routers for cabinetry production.

Table of Contents

1. Core Advantages of CNC Routers in Cabinetry Production

2. Key Mechanical Specifications for Cabinetry CNC Routers

3. Automatic Tool Changer Options for Cabinet Fabrication

4. Nesting Software Integration and Material Yield Optimization

5. Structural Evaluation and Bed Rigidity Analysis

6. Step-by-Step Machine Selection Framework for Cabinet Shops

7. Operational Maintenance and Dust Extraction Best Practices

Core Advantages of CNC Routers in Cabinetry Production

CNC Routers revolutionize cabinet manufacturing by combining precision panel nesting, vertical drilling, dado grooving, and perimeter cutting into a single automated operational cycle.

The integration of industrial CNC Routers into cabinet production solves the long-standing bottleneck of manual batching and multi-machine transfer. Traditional panel processing relies heavily on sliding table saws, point-to-point boring machines, and manual line-boring setups. This multi-step process introduces cumulative tolerance errors, increases material handling overhead, and subjects operators to hazardous material lifting. By consolidating these operations onto a single heavy-duty machine bed, CNC Routers execute complex cut lists with microscopic positional accuracy, eliminating manual transfer errors and drastically lowering cycle times per sheet.

From an engineering yield perspective, CNC Routers paired with intelligent CAD/CAM nesting software enable true two-dimensional panel optimization. Rather than being restricted to straight rip cuts across full sheets, nesting algorithms dynamically position cabinet sides, doors, shelves, and drawer bottoms across the workpiece. This spatial efficiency frequently increases sheet material utilization rates from 75% with manual panel saws up to 90% or higher with CNC Routers. For mid-sized to large-scale cabinetry shops processing hundreds of sheets weekly, this raw yield gain directly reduces raw material expenditure while minimizing landfill waste.

Furthermore, automated panel processing reduces reliance on specialized labor while dramatically elevating finished edge quality. High-speed spindle units combined with rigid gantry motion ensure clean tool engagement, suppressing top-layer chip-out on sensitive thermal fused laminates, high-pressure laminates, and double-sided melamine. For cabinet manufacturers seeking maximum output on standard 4x8 panel formats, incorporating a high-precision cabinet making CNC router machine platform ensures seamless panel processing with minimal operator intervention.

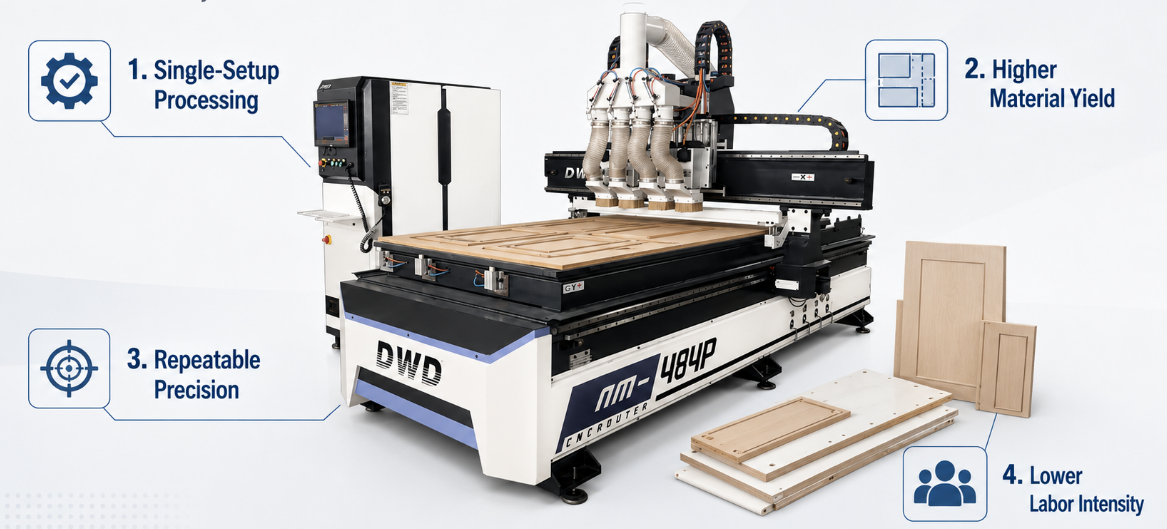

Primary operational advantages include:

1. Consolidated Processing Workflow: Single-setup execution of panel sizing, hinge-boring, shelf pin drilling, and back-panel Dadoing reduces material movement across the shop floor.

2. Superior Material Yield: Advanced nesting strategies optimize irregular component placement, maximizing raw panel efficiency and reducing unit cost.

3. Microscopic Repeatability: High-resolution servo drives deliver sub-millimeter positional repeatability across continuous production shifts.

4. Reduced Labor Intensity: Automated loading, vacuum clamping, and unloading modules reduce operator fatigue and minimize labor overhead.

Why is this machine architecture engineered in this manner? From a structural standpoint, cabinet components require perfectly orthogonal square cuts to guarantee tight joinery during assembly. Traditional sliding table saws rely on manual fence alignment, which drifts under thermal and mechanical load over time. Modern industrial CNC Routers resolve this through rigid, stress-relieved steel gantry structures and dual-drive helical rack systems, preserving absolute geometric precision under continuous heavy-duty cutting.

Key Mechanical Specifications for Cabinetry CNC Routers

Selecting high-performance CNC Routers for cabinetry requires rigorous evaluation of spindle horsepower, vacuum holding capacity, drive kinematics, and controller acceleration curves.

When specifying industrial CNC Routers for cabinetry, the main electro-mechanical engine is the high-frequency spindle. Cabinet materials such as thick particle board, medium-density fiberboard, and multi-ply hardwood plywood demand high torque across a rotational range of 12000 to 24000 RPM. A heavy-duty air-cooled or liquid-cooled spindle rated at 9.0 kW to 12.0 kW provides the requisite force to execute single-pass nesting cuts in 3/4-inch stock at rapid feed rates. Inadequate spindle torque leads to tool deflection, chatter marks along cut edges, and accelerated tool wear.

The vacuum holding system represents another critical mechanical column of high-efficiency CNC Routers. Panel workpieces must remain completely immobile during aggressive high-speed routing. Multi-zone vacuum beds equipped with high-displacement rotary vane or side-channel blowers allow operators to concentrate vacuum suction precisely underneath small or narrow cabinet parts. Matrix vacuum grid designs featuring heavy-duty phenolic or aluminum beds ensure uniform pressure distribution through sacrificial MDF spoilboards, preventing component movement during final contouring passes.

Linear drive kinematics dictate both vector positioning speed and cut surface smoothness. Industrial CNC Routers utilize precision helical gear racks on the main X and Y motion axes paired with preloaded planetary gearboxes, while the vertical Z-axis relies on high-resolution precision ball screws. This combination delivers rapid traverse speeds exceeding 60 meters per minute alongside high acceleration profiles. Combined with closed-loop AC digital servo motors, the motion system delivers immediate responsiveness without dynamic positioning lag.

What feature do European and international commercial buyers prioritize most? Field data shows that European furniture plants consistently request high-efficiency multi-zone vacuum layouts paired with automatic part unloading pushers. Because European panel production emphasizes lean flow and minimal idle time, vacuum tables engineered with quick-zone switching and integrated dust collection pushers allow instant panel loading and cleaning cycles.

Automatic Tool Changer Options for Cabinet Fabrication

Automatic tool changer configurations directly influence cycle times on CNC Routers by enabling rapid tool transitions between drilling, grooving, profiling, and nesting cutters.

Efficient cabinet manufacturing requires multiple cutting tool geometries during a single nesting operation. A typical cabinet component may require a 1/2-inch compression bit for perimeter nesting, a 5mm carbide drill for adjustable shelf holes, an 8mm bit for dowel construction, and a 3/8-inch router bit for back-panel dados. Without automatic tool changing systems, operators would be forced to pause production and perform manual collet tool changes, destroying throughput metrics. Modern CNC Routers solve this through integrated tool changers that switch tools in seconds.

The primary automatic tool changer styles engineered for CNC Routers are linear static racks and dynamic rotary carousel changers. Linear tool racks are typically mounted at the rear or side of the machine bed, offering a cost-effective and structurally simple mechanism. However, because the gantry must travel to the end of the bed to index tools, tool change cycle times are slightly longer. Conversely, rotary carousel tool changers mounted directly onto the moving gantry travel alongside the spindle head, permitting ultra-fast tool swaps in as little as 3 to 5 seconds.

For high-volume panel processing shops, multi-spindle drilling blocks can be integrated alongside the primary router spindle. These dedicated vertical drill banks house independent drill spindles arranged on standard 32mm grid centers. By utilizing dedicated drill banks for line boring and shelf pin holes while reserving the main spindle for heavy routing, CNC Routers maximize tool life while cutting overall cycle times by 20% to 30%. Implementing an optimized industrial nesting CNC router solution equipped with dynamic tool changers ensures continuous, uninterrupted production schedules.

Key tool changer considerations include:

1. Carousel vs. Linear Configuration: Gantry-mounted rotary carousels reduce non-cutting axis travel time compared to stationary linear tool racks.

2. Capacity Expansion: Opting for 12 to 16 tool positions allows cabinet shops to maintain specialized cutters, chamfer bits, and profiling tools on standby without manual setup.

3. Tool Holder Standards: ISO30 and HSK63F tool holders offer superior rotational balance and clamping force for high-speed routing above 18000 RPM.

4. Integrated Drill Blocks: Dedicated 9-spindle or 12-spindle drilling heads enable simultaneous hole patterns without cycling the primary router spindle.

Tool Shank Hygiene and Collet Maintenance: To maintain tool concentricity and eliminate micro-chatter, tool shanks and collet cones must be cleaned daily using isopropyl alcohol and inspected for brassing or fret corrosion. Torque wrenches must always be used during tool clamping to match factory torque specifications, preventing spindle arbor deformation or tool slippage during heavy nesting cuts.

Nesting Software Integration and Material Yield Optimization

Seamless integration between parametric CAD/CAM software and CNC Routers ensures perfect translation of cabinet design files into optimized CNC code with minimal material waste.

The true power of CNC Routers in cabinetry lies in software driven automation. Modern cabinet manufacturing begins in 3D parametric design environments such as Cabinet Vision, Microvellum, or Alphacam. Once cabinet configurations, dimensions, and hardware joinery are finalized, the software automatically decomposes the 3D models into individual flat panel geometries. The software then applies specialized machining operations, assigning tool paths, cutting leads, ramp angles, and feed rate overrides tailored specifically to the structural capability of the target machine.

Nesting algorithms calculate optimal geometric placement across standard sheet goods. Advanced true-shape nesting algorithms evaluate component rotation, grain orientation requirements, and tool bit kerf width to pack parts with tight clearance. Furthermore, intelligent software strategies apply common-line cutting, where a single pass of the router bit separates two adjacent cabinet parts simultaneously. This common-line strategy reduces machine travel distance, cuts cycle times, and preserves tool life while maximizing raw material yields.

Additionally, software control extends to vacuum zone management and cutting sequencing. To prevent small cabinet parts from shifting on the spoilboard due to vacuum loss, nesting software utilizes stay-down toolpaths, tabbed cutting bridges, or onion-skinning techniques. In an onion-skin strategy, the CNC router leaves a thin 0.5mm skin of material around small parts on the initial pass, maintaining full vacuum surface tension, before making a high-speed final cleanout pass to free the parts safely.

Why do actual cabinet shop owners focus so heavily on barcode integration? Modern cabinet production relies on error-free downstream operations. When CNC Routers complete a sheet, an integrated label printer outputs unique barcode stickers for every part. Operators slap these labels onto cut panels before unloading. Secondary machines, such as edge-banders and horizontal construction drillers, scan these barcodes to immediately load the correct program, eliminating manual setup mistakes.

Structural Evaluation and Bed Rigidity Analysis

High-rigidity frame engineering and vibration-damping structures are essential for CNC Routers to deliver smooth edge finishes and maintain mechanical precision over years of service.

The mechanical stability of industrial CNC Routers directly determines edge quality and long-term machine accuracy. During high-speed nesting operations, the machine gantry undergoes rapid directional changes, subjecting the frame to intense torsional and lateral inertia forces. If the machine base lacks sufficient mass and structural rigidity, these dynamic forces induce harmonic vibrations across the frame. These vibrations manifest visually as surface chatter marks along cut panel edges, requiring costly manual sanding before edge-banding can be applied.

To withstand these forces, commercial-grade CNC Routers are constructed using heavy-duty tubular steel beds that undergo thermal stress relief and shot blasting. Heavy-wall structural steel tube frames are stress-relieved in annealing ovens to eliminate internal welding stresses before precision machining. All guide rail mounting surfaces and gantry mounting pads are machined in a single setup on large multi-axis CNC gantry milling centers. This guarantees absolute flatness, parallelism, and perpendicularity across the entire machine travel envelope.

Furthermore, gantry design requires an optimal balance of structural stiffness and moving mass. An over-engineered, overly heavy gantry requires massive motor torque to accelerate and decelerate, leading to machine jerk and reduced mechanical life. Conversely, a lightweight aluminum extrusion gantry lacks structural stiffness, resulting in high-frequency deflection during heavy high-feed routing cuts. High-performance industrial CNC Routers utilize reinforced steel or thick-wall cast alloy gantries, engineered through Finite Element Analysis to deliver maximum rigidity with optimal acceleration characteristics.

Primary structural design highlights:

1. Annealed Heavy Steel Base: Stress-relieved steel structures prevent frame warping, maintaining dimensional calibration over decades.

2. Precision Machined Rail Pads: Single-setup gantry milling of guide rail seats ensures perfect rail alignment and smooth motion performance.

3. Dual-Drive Y-Axis Kinematics: Synchronized dual servo motors driving both sides of the gantry eliminate frame racking during off-center cutting load.

4. Heavy-Duty Phenolic Matrix Bed: Dimensional stable vacuum tables resist heat and moisture deformation, providing a flat foundation for spoilboards.

How does practical field usage drive key design iterations on these machines? In real-world factory environments, machine operators frequently load heavy multi-layer material stacks or dense hardwood panels onto the bed. Early machine frames engineered with lighter wall tubing exhibited subtle center-bed deflection under continuous heavy loads. Modern heavy-duty cabinet machinery utilizes multi-ribbed internal cross-bracing and thicker steel plates directly under the table support columns, eliminating center sag and ensuring consistent depth of cut across full 4x8 or 5x10 sheets.

Step-by-Step Machine Selection Framework for Cabinet Shops

A structured machinery evaluation process ensures that cabinet shops select CNC Routers that align perfectly with their current production volume and future growth targets.

Investing in CNC Routers represents a major capital expenditure for any woodworking facility. To ensure maximum operational fit, business owners must follow a systematic framework that evaluates shop floor layout, power infrastructure, material sizes, and desired throughput metrics. Purchasing an undersized or underpowered machine leads to continuous production bottlenecks, while purchasing an overly complex multi-axis system without adequate operational need inflates capital payback periods unnecessarily.

The initial step in the evaluation matrix involves defining sheet format dimensions and material handling requirements. Cabinet shops processing standard 4x8 foot sheets require a clear processing envelope of 1300mm by 2500mm. However, shops working with oversized 5x10 foot panel materials or solid surface goods should specify a 1500mm by 3000mm or larger bed size. Evaluating shop floor space must also account for automated loading tables and outfeed pusher conveyors, which double the overall machine footprint but increase throughput by 40%.

The second phase evaluates spindle configurations, tool changer requirements, and software compatibility. Shops manufacturing custom residential cabinets with intricate profiles and varying joint geometries benefit significantly from gantry-mounted rotary tool changers and dedicated vertical drill blocks. Evaluating machine compatibility with existing CAD/CAM software platforms prevents costly software lock-in and enables immediate integration into current shop workflows. Exploring a high-efficiency heavy duty CNC router for cabinet making provides a proven foundation for growing cabinet manufacturing businesses.

Follow this step-by-step selection workflow:

1. Audit Material Dimensions and Throughput Goals: Determine maximum panel sheet sizes and weekly sheet volume to establish required bed size and automation level.

2. Calculate Required Spindle and Vacuum Capacity: Select spindle power based on primary material density and select vacuum pump capacity based on part size profiles.

3. Specify Motion System and Structural Class: Choose heavy-duty welded steel bases with precision linear rails to support continuous dual-shift manufacturing.

4. Assess Automation and Material Handling Add-ons: Evaluate automatic loading hydraulic tables, panel pushers, and off-take conveyor belts to maximize operator efficiency.

5. Review Total Cost of Ownership and ROI: Factor in initial capital cost, energy consumption, tool wear rates, and maintenance support against projected labor savings.

Operational Maintenance and Dust Extraction Best Practices

Implementing rigorous preventive maintenance schedules and high-velocity dust collection ensures continuous uptime, pristine cut quality, and long service life for CNC Routers.

To maintain precise cutting tolerances and prolong the mechanical lifespan of industrial CNC Routers, preventive maintenance must be treated as a core operational discipline. Wood dust created during cabinet nesting is inherently abrasive and hygroscopic. If dust and fine chip debris accumulate on linear guide rails, ball screws, or rack teeth, they mix with lubrication grease to form an abrasive slurry. This slurry accelerates mechanical wear, introduces axis backlash, and damages rail wiper seals.

A robust dust collection system is mandatory for high-speed cabinet routing. Cabinet materials generate immense volumes of fine dust when machined with high-frequency spindles running at 18000 RPM. Dust collection hoods surrounding the spindle head must feature aerodynamically optimized shrouds and flexible bristle skirts to capture chips directly at the cutter tip. Ducting should maintain a minimum air velocity of 28 to 30 meters per second to prevent fine particulate settling within horizontal ducting lines.

Equally important is daily vacuum pump maintenance and spoilboard management. Phenolic vacuum beds rely on porous MDF spoilboards to distribute suction across sheet materials. Over time, heavy tool paths cut channels into the spoilboard surface, leading to vacuum pressure loss. Operators must fly-cut and surface the spoilboard regularly using wide-diameter surfacing bits to maintain a flat, clean sealing surface. Vacuum pump inlet filters must be inspected and blown clean daily to prevent vacuum motor overheating and loss of clamping force.

Preventive Spindle Air Filtration Protocol: High-frequency air-cooled electro-spindles utilize internal cooling fans to draw ambient air over internal motor windings. In cabinet shops processing MDF, fine airborne dust can clog cooling fins if spindle air intake filters are neglected. To prevent catastrophic thermal overload and bearing failure, inspect air intake filters weekly, clean with dry compressed air, and replace filter elements every 500 operating hours.

In conclusion, adopting high-performance CNC Routers is a transformative investment for modern cabinetry manufacturers. By carefully analyzing mechanical specs, nesting software integrations, tool changer options, and structural frame rigidity, cabinet shops can select a machine platform that maximizes material yield, reduces manual labor overhead, and delivers exceptional component quality across every project.
