How CNC Changed Cabinet Making

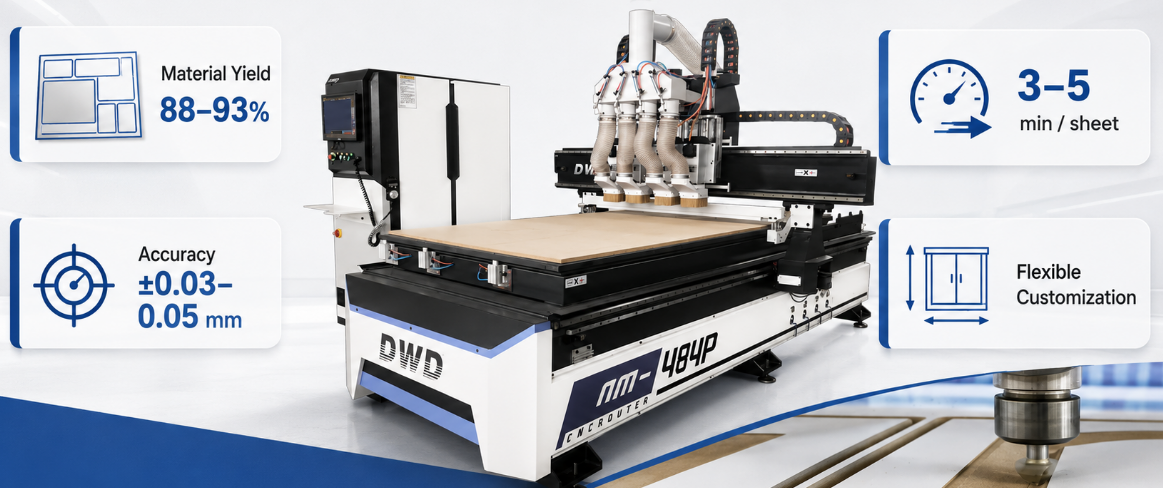

The integration of modern CNC Routers in cabinet making has replaced traditional physical template tracing and manual cutting with sub-millimeter nest-based machining, reducing raw material waste by up to 30%, decreasing production lead times from days to hours, and making complex joinery like hidden dowels, dovetails, and blind dadoes fully reproducible.

At a Glance

Historical Shift from Manual Craft to Automated Precision

The transition from manual cabinet making to CNC-driven production represents a paradigm shift from skill-dependent craftsmanship to repeatable, data-driven industrial engineering. Historically, custom cabinet fabrication relied heavily on table saws, sliding panel saws, manual routers, and physical boring machines. Every face frame, side panel, shelf, and drawer front required manual measurement, physical marking, and individual handling. This traditional workflow created cumulative tolerance errors, high material scrap rates, and extreme dependency on highly skilled woodworkers.

In traditional shop environments, producing a set of custom kitchen cabinets required hours of manual layout, cut-list calculations, and trial-and-fit assembly. A single dimensional error on a panel saw could compromise an entire cabinet carcass or ruin a complete sheet of high-grade plywood. Furthermore, complex joinery such as dado joints, pocket holes, and custom shelf pin hole series demanded dedicated machinery and multiple manual setups, severely limiting factory output and squeezing profit margins.

The introduction of computer numerical control technology revolutionized panel processing by consolidating cutting, routing, drilling, and grooving into a single automated operation. Modern flatbed routing platforms process full 4x8 or 5x10 feet engineered wood panels in minutes. By controlling motions across X, Y, and Z axes via digital code, modern equipment executes cutting strategies with consistent spatial accuracy below 0.05 millimeters, fundamentally changing how custom cabinetry is designed, budgeted, and built worldwide.

Core Advantages of CNC Routers in Cabinet Manufacturing

Implementing industrial CNC Routers delivers radical improvements in panel utilization rates, structural joint precision, batch repeatability, and overall operational throughput. The primary advantage lies in nested-base manufacturing (NBM). Rather than cutting individual rectangular blanks on a panel saw before secondary machining, nested routing processes an entire panel in one continuous operation, machining all vertical drilling, pocketing, shelf holes, and outline profiles directly from raw sheet material.

1. Maximum Material Yield Through Algorithmic Nesting: Advanced CAM software utilizes true-shape nesting algorithms to pack irregular cabinet components tightly onto a single sheet. This process minimizes off-cut scrap, boosting material yield from 70% in traditional sawing to over 90% with nested routing strategies.

2. Elimination of Cumulative Tolerance Errors: Because all operations—including hinge holes, shelf pin arrays, construction dowels, and perimeter cutting—are executed in a single clamping setup, alignment errors between intersecting cabinet parts are completely eliminated.

3. Drastic Reduction in Labor Intensity: A single machine operator can manage loading, machining, and unloading sequences that previously required three to four experienced woodworkers operating panel saws and boring machines.

4. Seamless Customization at Scale: Parametric software allows cabinet shops to modify width, depth, or height dimensions instantly without manual recalibration, enabling true custom mass production without slowing down the factory floor.

For high-volume panel processing, utilizing an optimized Cabinet making CNC router ensures maximum rigidity, rapid tool changing, and consistent high-speed routing across melamine, MDF, and plywood substrate stock.

Technical Workflow: From CAD/CAM Design to Finished Components

The digital cabinet manufacturing process transforms architectural line drawings into precise G-code commands, managing every mechanical movement of the routing machine. The workflow begins in specialized parametric cabinet design software, where virtual 3D models of cabinet units are configured. The software automatically calculates panel dimensions, structural joint positions, edge-banding allowances, and hardware hole patterns based on pre-configured manufacturing rules.

Once the 3D model is approved, the software extracts individual panel geometries and exports them to a Computer-Aided Manufacturing (CAM) processor. The CAM engine evaluates cutting tool geometries, spindle rotation rates, feed speeds, and ramp-in vectors to output optimized toolpaths. Nesting algorithms position the parts on virtual panels to balance material economy, grain orientation requirements, and vacuum suction stability.

The final stage is G-code execution on the factory floor. The operator loads raw sheet goods onto the vacuum table, initiates the suction zones, and starts the program. The machine executes automatic tool changes (ATC), switching seamlessly between 5mm drills for shelf pin holes, 8mm drills for construction dowels, 1/2-inch compression bits for perimeter cutout passes, and specialty grooving cutters for cabinet backboards.

Parametric Design Adjustments in Production

Parametric CAD platforms allow engineers to alter global cabinet parameters, such as overall carcass depth or door overlay clearances, causing all associated child components, dado depths, and hole offsets to recalculate automatically without manual drafting intervention.

Hardware Engineering and Machine Architecture Analysis

Industrial CNC Routers engineered for cabinet making rely on heavy structural frame mass, high-torque gantry movement systems, and multi-zone vacuum clamping tables. The structural frame serves as the foundation for machining accuracy. High-grade industrial machines feature heavy-duty steel tube structures that undergo stress-relieving thermal annealing and precision gantry milling. This prevents frame warping or micro-vibrations under heavy, high-speed cutting loads.

Motion transmission typically utilizes precision helical rack-and-pinion systems on the X and Y axes, paired with preloaded ball screws on the Z axis. Dual AC servo motors drive the Y-axis gantry to prevent twisting during high-speed feed movement. High-power electro-spindles (ranging from 9.0 kW to 12.0 kW) provide constant torque across broad RPM bands, ensuring clean cut edges through tough materials like compact laminates and dense hardwood plywoods.

Advanced Tooling and Material Handling Optimization

Achieving optimal edge quality, minimal burring, and high feed speeds on CNC Routers requires precise matching of cutting tool geometry with substrate characteristics. Cabinet components are produced from a wide range of materials, including double-faced melamine-faced chipboard (MFC), medium-density fiberboard (MDF), birch plywood, and solid surface composite materials. Each substrate exhibits unique chip-formation properties, abrasive characteristics, and core density gradients.

Compression spiral router bits are the industry standard for routing double-faced laminates. Featuring up-cut flutes at the bit tip and down-cut flutes along the upper shank, compression bits pull top and bottom laminate surfaces inward toward the sheet center, preventing tear-out, chipping, or top/bottom delamination. For solid wood face frames or thick MDF door profiling, multi-flute carbide-tipped or polycrystalline diamond (PCD) tools provide extended tool life and superior surface finishes.

Material handling systems further increase production output. Integrating automatic loading arms, pre-labeling printing units, and automatic unloading pushers converts a standalone router into an automated nesting cell. The pre-labeling system applies barcoded labels to raw sheets before routing, indicating part IDs, edge-banding rules, and assembly destinations for downstream operators.

Integrating an industrial CNC router for cabinet making equipped with automatic loading platforms and integrated line-boring heads allows factories to achieve continuous production cycles, maximizing daily output while reducing manual material handling.

High-Speed Tooling Strategy

Deploying PCD diamond tooling on nested MDF door lines dramatically reduces tool change downtime, extending cutting life up to 50 times compared to standard solid carbide tooling in highly abrasive fiberboard materials.

Economic Impact and Production Efficiency ROI

The operational shift to nested-base CNC Routers changes the cost structure of cabinet manufacturing by lowering direct unit labor costs and maximizing raw sheet yields. Evaluating investment returns involves direct labor savings, material yield improvements, reduced rework expenses, and expanded factory throughput capacity.

In a traditional cabinet shop setup, producing 50 custom cabinets per week typically requires four skilled technicians operating multiple dedicated machines, with a material waste factor around 25%. Transitioning to an automated nested routing cell enables two operators to yield up to 80 cabinets per week from the same shop floor area, while dropping material waste factors below 10%.

For medium-to-large panel processing facilities, investing in a robust Cabinet CNC router yields capital payback within 8 to 14 months, driven by reduced labor costs and material scrap savings.

Maintenance Protocols and Operational Excellence

Maintaining precision performance on industrial routing machinery requires structured preventative maintenance schedules focusing on pneumatic systems, spindle thermal management, and mechanical drive lubrications. Regular maintenance prevents unexpected machine downtime, maintains positional accuracy, and extends mechanical component lifespan under demanding production schedules.

Daily operational checks must prioritize vacuum table sealing gaskets and spoilboard surfacing protocols. Spoilboards (typically 12mm to 18mm breathable MDF) require regular surface planing using large-diameter fly-cutters to maintain parallel flat surfaces and clear clogged wood dust pores, ensuring maximum vacuum suction down to the smallest cabinet components.

Linear guides and helical rack systems require automated or strict manual grease lubrication with ISO VG 220 lithium-based lubricants to prevent friction wear and chip contamination. Air-cooled spindles must be checked daily for fan debris buildup, and pneumatic filter-regulator units must be drained to prevent moisture from entering tool release mechanisms.

Maintenance Protocol Focus (Spindle and Drive Engineering): Maintaining high-frequency electro-spindles requires clean air supply at a stable 6.0 bar pressure to preserve tool-clamping force. Collets and tool holders must be ultrasonically cleaned every 40 operational hours using specialized rust-inhibiting solvent to prevent chip build-up, tool runout, and premature spindle bearing failure.
