CNC Routers revolutionize modern cabinet making by converting raw digital design models into fully nested, cut, drilled, and routed cabinet components in a single automated pass, eliminating manual layout errors, minimizing material waste by up to 30%, and dramatically accelerating production throughput without compromising dimensional tolerances.
How to Modernize Cabinet Making with CNC Technology
How CNC Technology Streamlines Cabinet Making
The Versatility of CNC Router Machines
Why Choose CNC Routers from DWD?
Tips for Better Cabinet Making with CNC Routers

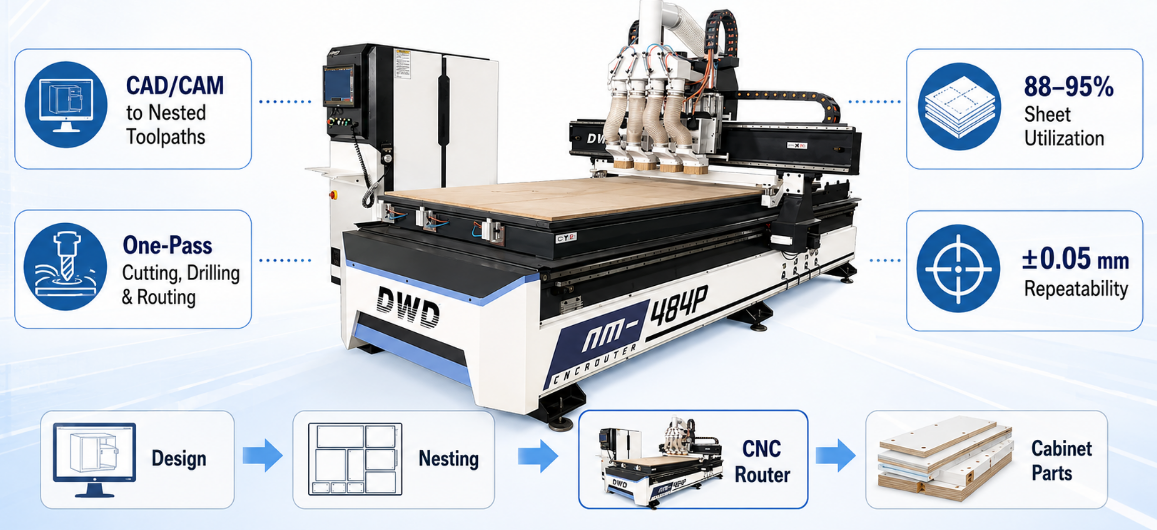

Modernizing cabinet making with CNC technology requires transitioning from fragmented manual machine setups to a fully digital, software-driven nesting workflow where automated CNC Routers parse parametric CAD models directly into optimized machining cycles.
To transition a traditional joinery shop into a modern digital fabrication facility, factory operators must look beyond individual cutting speeds and evaluate the entire panel yield pipeline. In traditional woodworking setups, a standard cabinet box requires multiple manual handlings across separate equipment: slitting on a sliding table saw, transferring to a vertical line boring machine for shelf pin holes and hinge dowels, and finally routing custom contours on a standalone spindle shaper. This multi-stage handling introduces cumulative dimensional tolerances, operator fatigue, and excessive material scrap. Implementing high-performance CNC Routers replaces these disparate processing steps with a unified nesting methodology, where raw particleboard, medium-density fiberboard (MDF), or plywood sheets are loaded directly onto a heavy-duty vacuum bed.
The software backbone plays a decisive role in this modernization process. Parametric cabinet design software converts client specifications directly into machining machine code, automatically calculating nesting patterns that maximize panel usage. When high-torque CNC Routers execute these nested toolpaths, the software optimizes tool engagement angles and feed rates, preventing edge breakout on delicate melamine and veneer surfaces. Furthermore, integrating automatic loading and unloading scissor lifts with automated CNC Routers removes manual lifting bottlenecks, enabling continuous single-operator batch production. Industrial facilities adopting a high-rigidity automated cabinet nesting CNC router regularly observe an immediate increase in daily sheet capacity alongside total elimination of dimensional inconsistencies between carcass components.
From an engineering perspective, modernization also requires updating structural substrate considerations. Wood materials expand and contract with environmental humidity, making mechanical repeatability critical. High-grade CNC Routers employ closed-loop AC servo motors paired with high-precision helical rack-and-pinion drives across the X and Y axes, while maintaining ball-screw driving mechanics on the Z-axis. This mechanical configuration guarantees that whether a shop processes 10 sheets or 500 sheets daily, every mortise, tenon, dado, and shelf-pin hole aligns perfectly during final cabinet assembly, eliminating fitting adjustments on the installation site.
Process Parameter | Traditional Panel Saw & Boring Setup | Automated CNC Router Nesting Setup |
Sheet Utilization Efficiency | 70% to 78% average yield | 88% to 95% maximized nested yield |
Machine Operations Required | 3 to 4 independent machine transfers | 1 single-pass nesting setup |
Average Processing Time per Sheet | 12 to 18 minutes (multi-step) | 3.5 to 5.5 minutes (complete nesting) |
Hole Alignment Tolerance | ±0.8 mm to ±1.5 mm | ±0.05 mm repeatability |
Required Direct Labor per Cell | 2 to 3 skilled woodworkers | 1 operator or semi-automated monitor |
Machining Principle: Nested-based manufacturing on industrial CNC Routers relies on vacuum hold-down forces exceeding 280 m³/h air flow capacity. By pulling high-volume vacuum suction through a sacrificial MDF spoilboard, small and large workpieces remain perfectly stationary under high lateral cutting forces, preventing part displacement during high-speed routing.
CNC technology streamlines cabinet making by consolidating slitting, grooving, drilling, and shaping into a continuous automated machining cycle that drastically cuts labor overhead and eliminates manual setup delays.
Streamlining factory workflows depends on minimizing non-cutting machine time. In traditional cabinet manufacturing, tool changeovers, manual workpiece clamping, and panel measurement consume up to 60% of total operator working hours. Industrial CNC Routers equipped with linear or rotary automatic tool changers (ATC) overcome this limitation by switching specialized end mills, compression bits, and drill blocks within seconds. During a single cabinet nesting cycle, high-speed CNC Routers can seamlessly alternate between a 12mm compression router bit for full-depth perimeter cuts, a 5mm carbide dowel bit for shelf support holes, and a V-groove bit for decorative door paneling without human intervention.
Dust extraction integration further optimizes processing continuity. When cutting particleboard or MDF at spindle speeds ranging from 18,000 to 24,000 RPM, fine wood particulates accumulate rapidly in cut grooves. High-efficiency CNC Routers incorporate multi-zone pneumatic dust hoods synchronized with Z-axis height sensors. By capturing airborne dust directly at the cutter tip, these machines protect precision linear guideways, maintain vacuum suction efficiency on small cabinet components, and prolong tool edge longevity by preventing chip re-cutting.
Furthermore, digital manufacturing eliminates line-item communication errors between design teams and factory operators. Because parametric CAD designs drive CNC Routers directly, barcode labelling systems can be integrated into the loading phase. Each nested part receives an automatically printed barcode label detailing edge-banding orientation, assembly hardware locations, and project ID numbers. Once routed by the CNC Routers, downstream operators simply scan the part barcode at the edge-bander or dowel insertion station, establishing an error-free, streamlined production line from raw panel to packed shipping crate.
Component Name | Structural Material / Specification | Functional Role in Cabinet Making |
High-Frequency Spindle | 9.0 kW to 12.0 kW air-cooled spindle | Delivers consistent torque for high-speed routing in dense hardwood and MDF |
Linear Motion Assembly | 30mm heavy-duty linear guide rails | Ensures vibration-free movement during high feed-rate directional changes |
Automatic Tool Changer | 8 to 16 position rotary/linear carousel | Enables rapid tool switching for multi-bit drilling, grooving, and trimming |
Vacuum Matrix Bed | Multi-zone phenolic grid with pneumatic valves | Delivers zoned suction pressure to hold small drawer sides and large panels securely |
Control System | Industrial numeric control unit with real-time feedback | Processes G-code algorithms, tool compensation, and servo axis coordination |
Maintenance Protocol: Inspect and clean the primary spindle collet and tool holders daily using alcohol cleaner and anti-corrosion grease. Accumulated resin or dust inside the collet reduces clamping force, causing cutter runout, shortened bit lifespan, and compromised edge finish on laminated cabinet doors.
The versatility of CNC router machines enables custom cabinet workshops to process an extensive range of engineered wood composites, non-ferrous metals, solid hardwoods, and specialized architectural materials on a single platform.
Modern residential and commercial cabinet projects require processing a diverse mix of materials. While standard carcass boxes primarily utilize melamine-faced chipboard or exterior-grade birch plywood, high-end cabinet doors and commercial fixtures frequently incorporate solid hardwood trims, compact laminate panels, acrylic accents, and soft aluminum extrusions. Industrial CNC Routers provide the torque, structural rigidity, and variable speed regulation needed to switch seamlessly between these diverse material substrates. By adjusting chip load calculations, spindle RPM, and feed rates within the CAM software, operators running CNC Routers can cut delicate acrylic display panels without melting or route heavy oak cabinet faces without burning.
In addition to material flexibility, versatility extends to complex cabinet joinery techniques. Modern European-style frameless cabinetry and American face-frame designs rely heavily on specialized mechanical fasteners, such as hidden cam locks, wooden dowels, and blind dado joints. Advanced CNC Routers execute these multi-axis machining requirements with high accuracy. When handling high-volume custom kitchen projects, equipping a factory with a high-efficiency panel CNC router allows joiners to execute blind dado joints and custom face-frame pocket holes in a single automated setup, ensuring structural rigidity while accelerating final assembly time.
Moreover, architectural cabinet shops frequently receive requests for custom decorative wall paneling, textured 3D cabinet door fronts, and intricate furniture carvings. Equipped with 3D surface machining capabilities, multi-axis CNC Routers transform flat MDF panels into fluid wave patterns, raised panel shaker doors, or intricate geometric screens. This versatility expands a workshop's service portfolio, converting a standard cabinet manufacturing facility into a full-service architectural millwork supplier capable of fulfilling complex commercial interior contracts.
Material Category | Typical Application | Recommended Tooling | Optimal Spindle RPM | Feed Rate Range |
Melamine Particleboard | Cabinet carcasses, adjustable shelving | Nesting compression bit (2-flute) | 18,000 to 21,000 RPM | 18 to 25 m/min |
Birch Plywood | Heavy-duty drawers, commercial fixtures | Up-cut carbide spiral bit | 18,000 RPM | 15 to 20 m/min |
MDF (Medium-Density Fiberboard) | 3D door panels, painted cabinet fronts | Diamond (PCD) nesting router bit | 20,000 to 24,000 RPM | 20 to 30 m/min |
Compact Laminate / HPL | Lab cabinetry, high-wear countertops | Single-flute carbide bit | 16,000 to 18,000 RPM | 8 to 12 m/min |
Solid Hardwood (Oak/Walnut) | Face frames, raised panel doors | Roughing & finishing ball-nose bits | 15,000 to 18,000 RPM | 10 to 15 m/min |
Tips for Material Selection: When routing double-sided melamine panels, always utilize high-grade carbide compression router bits on high-rigidity CNC Routers. Compression geometry forces top chips downward and bottom chips upward into the cut center, preventing costly surface laminate chipping on both sides of the panel.

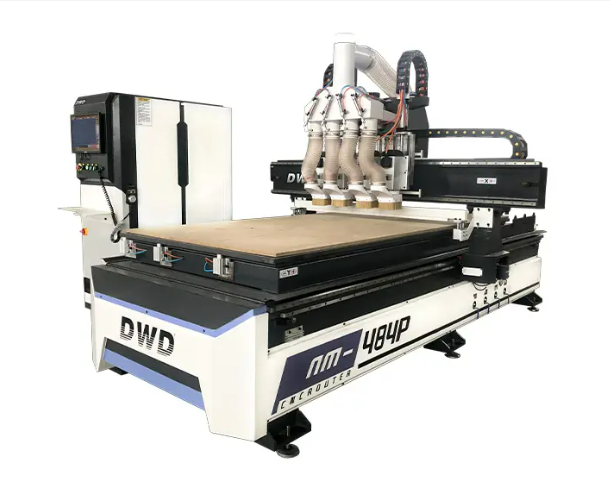

Choosing CNC routers from DWD ensures industrial-grade mechanical stability, superior structural vibration damping, high-volume production reliability, and long-term positioning accuracy tailored for demanding cabinet manufacturing environments.
When evaluating machinery investments, experienced factory managers recognize that overall machine mass and frame structural design dictate long-term machining accuracy. Light-duty routed frames fabricated from thin steel tubing suffer from resonance vibrations under heavy cutting loads, leading to chatter marks on cabinet door edges and accelerated spindle bearing wear. At DWD, our industrial CNC Routers are built upon heavy-duty welded steel beds subjected to rigorous stress-relieving heat treatment. This thermal annealing process eliminates internal metal stresses, guaranteeing that the bed structure maintains geometric flatness and axis alignment across decades of continuous two-shift operation.
Precision machining component selection represents another cornerstone of DWD engineering philosophy. Every machine cross-gantry undergoes precision five-sided CNC machining in a single setup to ensure absolute perpendicularity between the X, Y, and Z axes. Furthermore, DWD integrates premium Japanese Yaskawa AC servo motors, world-class Italian HSD high-frequency spindles, and precision German helical gear systems into our CNC Routers. These components deliver superior dynamic responsiveness, allowing fast acceleration and deceleration profiles without loss of positional accuracy during intricate cabinet door carving cycles.
Practical field application reveals that European and North American clients prioritize non-stop machine availability and low maintenance downtime. Based on extensive field feedback, DWD configures its cabinet manufacturing equipment with redundant vacuum zone control, automatic centralized lubrication systems, and intuitive touchscreen control interfaces. Implementing a robust industrial cabinet manufacturing CNC machine from DWD empowers production managers to achieve repeatable ±0.03 mm machining tolerances while significantly lowering per-component manufacturing costs.
Technical Feature | Engineering Specification | Manufacturing Benefit |
Bed Structure | Heavy-duty thick-wall steel tube frame, thermally stress-relieved | Eliminates frame distortion and dampens harmonic vibration during high-speed routing |
Axis Drive System | Precision helical rack & pinion (X/Y), high-grade ball screw (Z) | Ensures high-speed positioning up to 60 m/min with minimal mechanical backlash |
Vacuum Hold-down System | High-density phenolic matrix with double-layer chamber design | Focuses suction power precisely on active cutting zones to prevent small part movement |
Spindle Power Rating | 9.0 kW air-cooled spindle (100% duty cycle rated) | Maintains continuous cutting performance in thick hardwoods and dense laminates |
Positioning Precision | Repeatable positioning accuracy of ±0.03 mm across full working area | Guarantees seamless cabinet carcass assembly and perfect hardware hole alignment |
Engineering Insight: Why do DWD engineers insist on stress-relieving machine beds through heat treatment? During steel welding, local temperatures exceed 1,000°C, creating high internal tension. Without heat treatment, raw frames warp slowly over 12 to 18 months, causing gantry misalignment and destroying panel cutting squareness. Heat treatment permanently stabilizes the structural frame.
Achieving superior cabinet quality with CNC routers requires systematic optimization of tool chip loads, spoilboard surface maintenance, vacuum suction management, and CAD/CAM nesting strategies.
To maximize efficiency and finish quality when operating CNC Routers, factory managers must institute standardized operational protocols. The first critical factor is managing the sacrificial spoilboard. Spoilboards—typically 12mm to 18mm low-density MDF panels placed over the main phenolic vacuum bed—distribute vacuum suction across the entire working envelope. Over continuous cutting cycles, router bits mill shallow grooves into the spoilboard surface. If left unmanaged, these grooves allow vacuum leakage, reducing hold-down pressure on small drawer sides or narrow cabinet rails. Flying fly-cutter surfacing passes should be scheduled regularly to restore a smooth, flat spoilboard surface, maintaining optimal suction density across all active vacuum zones.
Tooling strategy represents the second operational pillar. Using worn or improper cutter geometries on CNC Routers generates excessive heat, causing edge burn, resin buildup, and panel delamination. Calculating correct chip load parameters is mandatory:
Maintaining a consistent chip load prevents fine dust creation, transferring heat into the wood chips rather than the cutter body. For particleboard nesting, diamond-coated (PCD) tools offer up to 50 times longer service life compared to standard solid carbide tools, significantly reducing tool replacement downtime on high-volume production lines.
Finally, CAD/CAM programmers must optimize nesting entry and exit strategies. Utilizing ramped or helical plunging rather than direct vertical plunging prevents tool breakage and localized board blowout. Additionally, implementing small tab connections or onion-skin cutting techniques for small parts ensures that narrow components retain complete stability during the final perimeter routing pass on high-speed CNC Routers.
Machining Symptom | Potential Root Cause | Corrective Action |
Top/Bottom Edge Chipping on Melamine | Worn compression cutter or incorrect feed-to-speed ratio | Replace tool; recalculate chip load; verify correct direction of compression flutes |
Small Workpiece Movement during Cut | Vacuum leakage through damaged spoilboard or clogged filters | Surface spoilboard; clean vacuum intake filters; apply onion-skin CAM strategy |
Excessive Surface Burn Marks | Spindle RPM too high relative to low feed rate | Increase feed rate or lower spindle RPM to maintain recommended chip load |
Dimensional Out-of-Squareness on Panel | Mechanical backlash or gantry out-of-square alignment | Recalibrate home position sensors; inspect rack-and-pinion gear engagement |
Rough Finish on Hinge Dowel Holes | Dull drill bit or excessive chip accumulation | Clean drill block dust shroud; replace dowel drill bits with carbide-tipped units |
Optimization Tip: When machining small cabinet components under 0.1 square meters, implement a two-pass "onion-skin" CAM strategy on your CNC Routers. Leave a thin 0.8mm substrate layer during the first high-speed nesting pass to maintain full vacuum seal, then complete a fast cleanup pass to separate parts without displacement.
The transformation of traditional cabinet joinery into high-efficiency digital manufacturing centers on the strategic implementation of automated CNC Routers. By consolidating nesting, vertical boring, grooving, and profiling into a unified software-driven process, cabinet producers eliminate cumulative manual layout errors, boost panel yield to nearly 95%, and drastically cut labor costs. Investing in industrial-grade CNC Routers backed by robust mechanical engineering, such as DWD's stress-relieved bed frames and high-precision drive systems, provides panel processing plants with the operational flexibility, speed, and accuracy required to excel in today's competitive commercial and residential markets.
