Views: 0 Author: Site Editor Publish Time: 2025-08-15 Origin: Site
Ever wondered how industries achieve precise angled drilling? CNC drilling machines are the answer. These machines revolutionize manufacturing with their accuracy and efficiency. Drilling angles are crucial for creating complex parts. In this guide, you'll learn how to effectively drill angles using CNC machines, ensuring precision and productivity.
A CNC drilling machine consists of several key parts that work together to perform precise drilling tasks:
Spindle: Holds and rotates the drill bit.
Tool Holder: Secures the drill bit firmly in the spindle.
Worktable: Supports the workpiece during drilling.
Control Panel: Interface for programming and operating the machine.
Motors and Drives: Move the spindle and table along different axes.
Sensors: Monitor position, speed, and other parameters.
Coolant System: Keeps the drill bit and workpiece cool to prevent overheating.
Each component plays a crucial role in ensuring accuracy and efficiency during drilling operations.
There are various CNC drilling machines designed for different applications and drilling complexities:
Vertical CNC Drilling Machines: The spindle moves vertically. Ideal for simple, straight drilling.
Horizontal CNC Drilling Machines: The spindle moves horizontally, useful for drilling holes on the sides of workpieces.
Multi-Spindle CNC Drilling Machines: Equipped with multiple spindles to drill several holes simultaneously, increasing productivity.
Gang Drilling Machines: Have multiple drill heads arranged in a gang for sequential drilling without tool changes.
5-Axis CNC Machines: Allow drilling at complex angles by moving the spindle and workpiece in multiple axes, perfect for angled drilling tasks.
Choosing the right type depends on the complexity, volume, and angle requirements of your drilling job.
CNC drilling machines find use in many industries due to their precision and automation capabilities:
Automotive: Drilling engine blocks, chassis components.
Aerospace: Creating complex holes in lightweight alloys.
Manufacturing: Producing parts with high repeatability.
Construction: Drilling holes in metal beams, plates.
Electronics: Precise drilling on circuit boards.
Benefits of CNC drilling machines include:
High Precision: Accurate hole placement and angle control.
Repeatability: Consistent results across large production runs.
Efficiency: Faster drilling with less manual intervention.
Flexibility: Ability to drill complex angles and shapes.
Reduced Errors: Automated programming minimizes human mistakes.
For example, a 5-axis CNC machine can drill angled holes on aircraft components, ensuring structural integrity and aerodynamic efficiency. This capability saves time and reduces the need for manual adjustments.
Understanding these components, types, and applications helps you select the right CNC drilling machine and approach for drilling angles effectively.
Choosing the right tools is crucial for drilling angles accurately on a CNC machine. Start by selecting drill bits designed for angled holes, such as:
Spotting drills for creating precise starting points.
Countersink bits if the hole requires a chamfer.
Specialty drill bits like tapered or angled drills to match the desired hole angle.
Consider the material you’re drilling. Hard metals like stainless steel need carbide or cobalt drill bits. Softer materials, like aluminum or plastics, work well with high-speed steel bits.
You might also need accessories such as a rotary table or a tilting fixture. These help position the workpiece at the correct angle relative to the spindle. For example, a rotary table allows rotating the part precisely, enabling angled drilling without complex programming.
Make sure your tool holders and collets are compatible with the drill bits and can hold them securely. Any looseness can cause inaccuracies or tool breakage.
Proper setup ensures the machine drills at the exact angle required. Here’s how to prepare:
Mount the workpiece firmly on the worktable or fixture. Use clamps or vises designed for angled setups.
Install the appropriate tool holder and drill bit into the spindle.
If your machine supports it, attach a rotary table or tilting fixture and secure the workpiece to it.
Use the machine’s control panel or software to zero the axes. Set the origin point carefully, especially if you use a rotary table.
Adjust the spindle orientation if your machine has multi-axis capability. For example, a 5-axis CNC can tilt the spindle to the desired angle.
Verify the setup by manually jogging the tool to the starting point to avoid collisions.
Safety is key when working with CNC machines, especially during angled drilling:
Always wear safety glasses and protective gloves.
Ensure the workpiece is tightly secured to prevent movement during drilling.
Double-check tool installation for tightness to avoid tool ejection.
Keep hands clear of moving parts during operation.
Use appropriate coolant or lubricant to prevent overheating and extend tool life.
Verify the program and simulate the drilling path before actual cutting to avoid crashes.
Be aware of emergency stop buttons and know how to use them.
By carefully selecting tools, setting up the machine correctly, and following safety protocols, you ensure precise, efficient angled drilling on your CNC machine. This preparation minimizes errors and maximizes productivity.
Programming a CNC machine for angle drilling starts by defining the drilling operation in the CNC code. Typically, you use G-code, the standard language for CNC machines. Here’s how to approach it:
Define the tool and spindle speed: Use commands like T for tool selection and S for spindle speed.
Set the feed rate: Specify how fast the drill moves into the material using the F command.
Position the tool: Use G00 for rapid positioning and G01 for controlled feed moves.
Include drilling cycles: Many CNC controls have canned cycles such as G81 for drilling, which simplifies the code.
For angle drilling, the program must account for the tool or workpiece orientation. This means programming the axis rotations or offsets that set the drill at the desired angle.
Angles are critical for precise angled holes. There are two main ways to input them:
Using rotary or tilting axes: If the CNC machine has a rotary table or a tilting head, you program the angle by rotating the relevant axis. For example, on a 5-axis machine, you might rotate the A or B axis to the desired angle before drilling.
Adjusting tool orientation: Some machines allow you to tilt the spindle itself. You input the angle as part of the tool orientation commands.
Make sure to convert the angle correctly into the machine’s coordinate system. For instance, a 30° tilt might be programmed as a rotation around the X or Y axis, depending on your setup.
Before running the actual program, simulate the drilling operation. Simulation helps catch mistakes and verify angles without wasting material or risking tool damage.
Use CAM software: Most CAM programs provide 3D simulation of toolpaths, showing how the drill moves and the hole’s angle.
Machine control simulation: Some CNC controls include built-in simulation features to preview the program.
Check for collisions: Ensure the tool, spindle, and workpiece don’t collide during angled moves.
Verify toolpaths: Confirm the drill follows the programmed angle and reaches the correct depth.
Simulation saves time and prevents costly errors. It’s especially important when drilling complex angles or using multi-axis machines.
Once your CNC machine is programmed and set up for angle drilling, it’s time to start the operation. Begin by:
Powering on the machine and ensuring all systems are ready.
Loading the CNC program you created for the angled drilling.
Double-checking tool and workpiece setup to confirm nothing shifted during programming.
Running a dry run or simulation on the machine itself, if possible, without the drill bit touching the workpiece. This step helps verify the path and angles.
Engaging the spindle at the correct speed for your material and tool.
Starting the drilling cycle by initiating the program.
Make sure emergency stops and safety controls are within easy reach before beginning.
During drilling, keep a close eye on the process to catch issues early:
Watch for unusual noises or vibrations that might indicate tool wear or misalignment.
Observe the chip formation and coolant flow to ensure efficient cutting and cooling.
Check the spindle load on the control panel; spikes can signal a problem.
Verify the tool is maintaining the programmed angle by visually inspecting the hole or using measurement tools if accessible.
Listen for any signs of chatter or binding which could damage the tool or part.
If your machine has sensors or cameras, use them to monitor remotely. Regular checks help avoid costly mistakes.
Angle drilling on CNC machines can encounter several common problems. Here’s how to address them:
Tool deflection or bending: Often caused by excessive feed rates or dull bits. Reduce feed speed or replace the drill bit.
Incorrect hole angle: Check the rotary table or tilting fixture setup. Recalibrate the angle and verify the program’s axis rotations.
Poor hole quality (burrs, rough edges): Adjust spindle speed, feeds, or coolant flow. Make sure the drill bit is sharp.
Tool breakage: Confirm proper tool installation and secure clamping. Avoid excessive depth or aggressive feeds.
Workpiece movement: Tighten clamps or use better fixtures. Vibration can cause inaccuracies.
Machine alarms or errors: Review error codes. They often indicate axis limits exceeded or collisions. Stop the machine and inspect before restarting.
If problems persist, pause the operation and inspect the setup thoroughly. Sometimes small misalignments or worn components cause big issues.
Optimizing speeds and feeds plays a big role in drilling angled holes efficiently. When drilling at an angle, the cutting forces change compared to straight drilling. This can cause more tool wear or poor hole quality if speeds and feeds are not adjusted properly.
Reduce feed rates slightly for angled drilling. The drill bit engages the material unevenly, so slower feeds help prevent deflection or breakage.
Adjust spindle speed to match material and drill bit type. For harder materials, slower speeds reduce heat buildup.
Use recommended chip load values for the drill bit at the given angle. Chip load affects tool life and hole finish.
Apply coolant or lubricant generously to reduce heat and friction, especially when feeds or speeds increase.
For example, if your usual feed rate for a straight hole in aluminum is 0.005 inches per revolution, try reducing it by 10-20% for a 30° angled hole. This adjustment helps maintain tool stability and hole accuracy.
Advanced toolpath strategies can significantly improve efficiency and hole quality when drilling angles on CNC machines.
Helical or spiral entry: Instead of plunging straight down, the drill follows a helical path into the material. This reduces stress on the bit and improves chip evacuation.
Peck drilling cycles: Involves drilling in small increments with retracts to clear chips and cool the tool. Very helpful for deep angled holes.
Multi-axis interpolation: On 5-axis machines, toolpaths can smoothly adjust the spindle angle and position simultaneously. This avoids sudden movements and maintains consistent cutting conditions.
Adaptive feed control: Some CNC controls adapt feed rates based on cutting load feedback, optimizing speed automatically.
Using these strategies reduces cycle times and extends tool life. Many CAM software packages support these toolpaths, letting you simulate and fine-tune them before machining.
Continuous feedback and monitoring improve drilling performance over time.
Use machine sensors to track spindle load, vibration, and temperature. High loads or vibrations indicate tool wear or setup issues.
Inspect holes regularly for size, angle, and surface finish. Use gauges or coordinate measuring machines (CMM) to verify accuracy.
Record and analyze data from each run. Note which parameters led to better results and which caused problems.
Adjust programs based on feedback. For example, if a specific feed rate causes chatter, reduce it in the next run.
Train operators to recognize signs of tool wear or poor setup early.
This feedback loop helps prevent costly errors and downtime. It also allows you to optimize parameters for different materials and hole angles, improving overall productivity.
Keeping your CNC drilling machine in top shape means regular maintenance. It prevents breakdowns and keeps drilling angles precise. Here’s what to do routinely:
Clean the machine daily: Remove chips, dust, and coolant residues. Use brushes and air blowers for hard-to-reach spots.
Lubricate moving parts: Apply oil or grease on guides, bearings, and ball screws to reduce friction.
Check coolant levels and quality: Replace coolant regularly to avoid contamination that can damage tools or workpieces.
Inspect tool holders and collets: Clean and check for wear or damage. A loose holder can cause inaccurate drilling angles.
Tighten bolts and fasteners: Vibrations can loosen components, affecting machine accuracy.
Calibrate machine axes: Regularly verify axis positioning and re-zero if needed to maintain angle precision.
Update software and firmware: Ensure the CNC control software runs the latest version for optimal performance and bug fixes.
Following these steps helps avoid unexpected downtime and maintains the machine’s drilling accuracy.
Wear and tear can impact your machine’s ability to drill accurate angles. Watch for these signs:
Unusual noises or vibrations during operation often indicate worn bearings or loose parts.
Inconsistent hole dimensions or angles may mean spindle or axis misalignment.
Visible damage on tools or holders like chipping or deformation.
Sluggish or jerky axis movements can signal worn ball screws or guideways.
Coolant leaks or contamination that reduce cooling efficiency.
Increased spindle runout causing drill wobble and poor hole quality.
Early detection helps you fix issues before they worsen. Use dial indicators, runout gauges, or laser alignment tools for precise checks.
To extend your CNC machine’s life and keep angle drilling precise, consider these tips:
Train operators thoroughly on proper machine use and maintenance.
Use high-quality tools and parts to reduce wear on the machine.
Avoid overloading the spindle or axes by following recommended speeds, feeds, and depth of cuts.
Implement a maintenance log to track inspections, repairs, and replacements.
Store the machine in a clean, temperature-controlled environment to prevent rust and electronic failures.
Schedule professional servicing periodically for in-depth inspections and calibrations.
By taking care of your CNC drilling machine, you ensure consistent performance and accurate angle drilling for years.

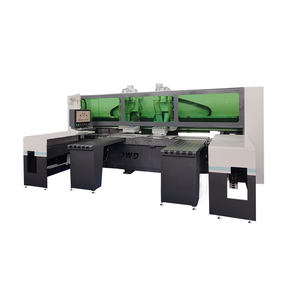

Understanding CNC drilling machines involves recognizing their components, types, applications, and programming for precise angle drilling. Future trends suggest advanced toolpath strategies and feedback systems will enhance efficiency. Choosing the right machine and maintaining it ensures optimal performance. DWD MECHATRONICS CO.,LTD offers innovative CNC machines with unique benefits, providing value through precision and reliability. Their products are designed to meet diverse drilling needs, making them a trusted choice for industries seeking quality and efficiency.
A: A CNC drilling machine is a computer-controlled device used to perform precise drilling tasks on various materials.
A: A 5-axis CNC machine allows drilling at complex angles by moving the spindle and workpiece in multiple axes, perfect for angled drilling tasks.
A: Wear safety glasses, ensure workpiece is secured, check tool installation, and use coolant to prevent overheating.
A: Adjust speeds and feeds, use advanced toolpath strategies, and implement feedback for continuous improvement.
