Views: 0 Author: Site Editor Publish Time: 2026-09-02 Origin: Site
Commercial woodworking faces a critical tipping point today. Shrinking profit margins, severe skilled labor shortages, and skyrocketing consumer demand for customized furniture apply immense pressure on traditional shops. Relying on manual millwork fundamentally caps your ability to scale operations. The industry transition toward automated digital fabrication is no longer just a luxury. It is an absolute necessity for survival and growth in a highly competitive market. You simply cannot meet modern production schedules relying exclusively on hand-operated tools. This comprehensive guide provides shop owners and production managers an objective framework. We will help you evaluate, specify, and successfully implement advanced digital manufacturing technology. You will learn how to identify production bottlenecks, select the right machine configurations, and seamlessly integrate digital workflows into your daily operations.
Upgrading to automated routing shifts production bottlenecks from physical execution to design and software preparation.
Selecting the right equipment requires matching spindle capacity, table configuration, and tool changing systems to your specific product mix.
Successful implementation demands rigorous attention to infrastructure upgrades, including dust collection, power supply, and CAD/CAM software integration.
Evaluating ROI requires measuring not just speed, but reductions in material waste, rework, and manual handling time.
Every commercial woodshop eventually hits a physical ceiling. Manual processing limits revenue growth significantly. You can easily spot this tipping point. When your crew struggles to process more than 10 to 15 sheets of material per day, manual cutting becomes your primary bottleneck. Operating table saws and manual routers at this volume causes severe fatigue. It also introduces dangerous margins of error. Transitioning to automated systems eliminates these physical constraints. You can process dozens of sheets daily without breaking a sweat.
The woodworking industry currently suffers from a massive shortage of highly skilled craftsmen. Relying on these veterans for repetitive cuts wastes their valuable expertise. Upgrading your production line shifts your labor dynamic entirely. You move away from depending on master woodworkers for basic sizing. Instead, you utilize trained operators for automated, high-tolerance replication. This shift frees your master craftsmen to focus on complex assembly, custom finishing, and quality control. Automated replication ensures every single part perfectly matches the initial design.
Expensive sheet goods and premium hardwoods eat into your profit margins quickly. Manual cutting inevitably generates substantial offcuts and scrap. Algorithmic nesting software solves this problem brilliantly. The software automatically arranges your part files onto a digital sheet. It calculates the tightest possible spacing between parts. This intelligent packing maximizes the yield of every single board. You dramatically reduce material waste. Over a single production quarter, these material savings often justify the initial equipment investment.
You must establish clear baseline metrics to measure a successful integration. Speed alone does not dictate success. You should look for measurable downstream improvements. For example, aim for a 30% reduction in assembly time. Tighter joint tolerances mean cabinets snap together perfectly. Your assembly team spends less time sanding, forcing joints, or applying excess glue. Tracking reductions in rework and scrapped parts gives you a true picture of operational improvement.

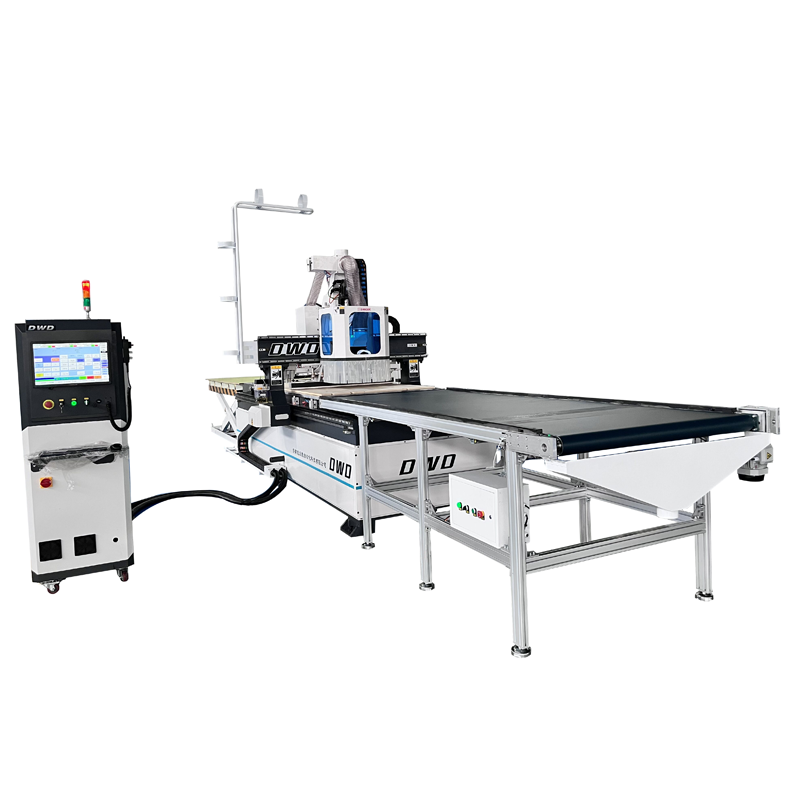

Nested-based manufacturing represents the gold standard for modern casework. A dedicated cnc router machine for furniture transforms panel processing into a single-step operation. The machine cuts the cabinet profiles, bores holes for shelf pins, and machines pockets for hinges simultaneously. It can even drill precisely for minifix connectors. You accomplish all these tasks in a single setup. Operators no longer need to move heavy panels between the table saw, drill press, and edge bander routing stations.
Solid wood furniture requires complex, highly accurate joinery. Historically, cutting blind mortise and tenon joints demanded multiple specialized workstations. Dovetails and angled cuts required elaborate jigs and immense patience. Automated routing consolidates these processes beautifully. High-precision spindles carve out intricate joints effortlessly. The resulting fit is consistently flawless. You can produce complex chairs, tables, and bed frames much faster. The machine handles the tedious joinery while your team handles final glue-ups.
Modern furniture design often incorporates organic shapes and flowing lines. Producing ergonomic chair seats manually requires extensive sculpting and sanding. Textured wall panels and intricate custom carvings demand hundreds of man-hours. Automated systems excel at 3D surface machining. The machine reads complex topographical maps from your design software. It then carves these sweeping curves and deep textures directly into the wood. You achieve stunning aesthetic results without building a single custom jig.
Digital workflows completely alter product development cycles. Designers can create a new furniture piece in CAD software. You can then run a rapid prototype in a matter of hours. This allows you to test ergonomics, joint fit, and aesthetic appeal immediately. Once approved, you instantly scale to batch production. You do not need to build new templates or retool your shop. The exact same digital file that cut the prototype will flawlessly cut five hundred units.
Best Practices for Application: Always run a scrap-wood test for new 3D surface files. Complex carving paths occasionally contain software anomalies. Catching them on scrap material prevents ruining expensive hardwood blanks.
Selecting the right axis configuration dictates what products you can actually manufacture. A standard 3-axis machine moves up, down, left, right, forward, and backward. It proves ideal for flat-panel goods, MDF cabinet doors, and standard casework. However, it cannot undercut or rotate around a part. A 4-axis or 5-axis machine introduces rotary motion. These advanced machines are absolutely necessary for complex architectural millwork. They easily handle curved furniture components and multi-sided processing. You can machine a chair leg on all sides without ever unclamping or repositioning the stock.
The spindle serves as the beating heart of your equipment. You must connect horsepower and cooling type directly to your material density. Cutting softwoods or thin plywood requires less torque. An air-cooled spindle handles these lighter loads perfectly. Conversely, processing dense hardwoods, thick Baltic birch, or composite materials demands high horsepower. For continuous, heavy-duty operating hours, a liquid-cooled spindle is mandatory. Liquid cooling dissipates heat efficiently, extending bearing life and preventing thermal shutdown during massive production runs.
Holding your material securely is critical for accuracy and safety. Manufacturers generally offer two primary table systems. You must match the table to your primary workflow.
Table Comparison: Flat Vacuum vs. Pod-and-Rail
Table Type | Primary Strengths | Ideal Applications |
|---|---|---|
Flat Vacuum Table | Maximum surface area hold-down; accommodates spoilboards. | Nesting sheet goods, plywood cabinetry, MDF doors. |
Pod-and-Rail System | Elevates parts for side access; highly configurable clamps. | Solid wood edge-profiling, horizontal boring, custom joinery. |
Manual tool changes destroy production efficiency. Complex jobs require multiple passes using different tools. You might need a compression bit for cutting, a V-groove bit for chamfering, and a brad-point bit for drilling. An Automatic Tool Changer (ATC) swaps these tools in seconds. Linear ATCs sit at the end of the table. They are reliable but require the gantry to travel back and forth. Rotary ATCs ride directly on the gantry. They offer lightning-fast swaps, drastically reducing cycle times. Investing in a rotary ATC provides massive ROI for high-volume shops.
Common Mistakes: Buying a powerful machine but skimping on the vacuum pump. A weak vacuum pump allows sheets to shift during aggressive cuts, instantly ruining parts and snapping expensive router bits.
Hardware represents only half of the digital fabrication equation. The software ecosystem drives the entire operation. You must establish a seamless design-to-machine workflow. This process begins in CAD (Computer-Aided Design) software. Industry standards like Cabinet Vision, AutoCAD, or Fusion 360 allow you to model your furniture. However, the machine cannot read these design files directly. You must translate them into optimized G-code via CAM (Computer-Aided Manufacturing) software. The CAM software calculates the precise toolpaths, speeds, and feeds required to execute your design safely.
Custom furniture orders require constant size adjustments. Redrawing a cabinet manually simply takes too long. Parametric software solves this issue brilliantly. You build your furniture models using mathematical rules and relationships. If a client wants a wardrobe three inches wider, you simply type in the new dimension. The parametric software instantly resizes the entire model. It adjusts all the joinery, shelving, and hardware hole locations proportionally. The software then automatically updates the toolpaths without any manual recalculation.
You must rigorously verify controller compatibility before purchasing equipment. An industrial Cnc Router Machine utilizes specific control systems. Brands like Syntec, Fanuc, or proprietary European controllers dominate the market. Your chosen CAD/CAM software stack must communicate flawlessly with this specific controller. A post-processor acts as the translator between your software and the machine. If a reliable post-processor does not exist for your specific pairing, you will face endless coding errors. Always demand a software demonstration using your specific machine controller.
Many shop owners drastically underestimate the physical footprint and utility requirements of automated equipment. You cannot simply plug these machines into a standard wall outlet. Commercial routers demand robust 3-phase power installation. Furthermore, cutting at high speeds generates massive volumes of sawdust and chips. Standard shop vacs will fail immediately. You must install high-CFM dust collection systems piped directly to the machine head. Finally, pneumatic tool changers and pop-up alignment pins require dedicated, moisture-free compressed air lines to function properly.
Upgrading your shop alters your hiring and training requirements. Running advanced equipment shifts the necessary skill set entirely. The job moves away from traditional manual woodworking techniques. It leans heavily into computer literacy, spatial geometry, and machine troubleshooting. Your best manual carpenter might struggle initially with G-code coordinates. Conversely, a tech-savvy employee might excel at operating the software but lack basic wood grain knowledge. You must bridge this gap through structured, patient training programs.
Automated equipment requires strict, proactive maintenance schedules. You cannot treat these machines like a durable cast-iron table saw. Precision tolerances demand regular upkeep. Spindle maintenance, including daily warm-up routines, prevents bearing failure. Vacuum pump servicing ensures consistent material hold-down. Additionally, you must perform regular gantry squaring. Minor collisions or heavy vibrations can knock the gantry slightly out of square. An unsquared gantry ruins joint fits across large panels. Implement a rigid weekly maintenance checklist.
Budgeting strictly for the machine price guarantees financial stress. You must anticipate significant hidden costs during implementation. Premium tooling represents a major ongoing expense. High-performance compression bits and diamond-tipped cutters cost significantly more than standard router bits. You must also budget for annual CAD/CAM software licensing and ongoing technical support fees. Most importantly, anticipate significant material waste during your first month. Trial phases, operator errors, and dialing in software parameters will inevitably consume expensive sheet goods.
Transitioning to automated digital fabrication fundamentally transforms your manufacturing capabilities. However, a successful integration requires a strategic approach. We recommend starting your procurement process by auditing your current production bottlenecks. Do not shop simply based on machine price or flashy features. Determine exactly where your labor hours vanish, and buy the specific hardware required to solve that exact problem.
Advise your decision-makers to request physical cut-tests. Send your own specific furniture design files to the manufacturer. Watching a machine cut your actual product provides invaluable insight into cycle times and cut quality. This tangible proof drastically reduces buyer's remorse.
Ultimately, an industrial router acts as the central production hub for your entire facility. It dictates shop flow, material handling, and assembly speed. Treating it as a holistic operational upgrade, rather than just a new tool, guarantees long-term manufacturing success.
A: A standard 4x8 machine requires significantly more space than its cutting bed. You must account for the physical footprint of the frame, control cabinet, and vacuum pump. Furthermore, you need a minimum of four feet of clearance on all sides. This clearance allows operators to safely load heavy sheet goods and unload finished parts without obstruction.
A: Stepper motors move in distinct, fixed increments and are generally slower. They lack closed-loop feedback, meaning they cannot detect if they miss a step. Servo motors are faster, smoother, and feature closed-loop encoders. The encoder constantly verifies the motor's exact position. This ensures extreme commercial accuracy and prevents ruined parts during heavy cutting.
A: Yes, but it requires strategic fixturing. A flat vacuum table easily handles sheet goods. To process solid wood on that same table, you can utilize specialized vacuum pods. These pods secure directly to the flat table, elevating the solid wood component. This hybrid approach gives you clearance for side-profiling and edge work.
A: Most commercial shops see a positive return on investment within 12 to 18 months. This timeline depends heavily on production volume and labor reallocation. Replacing two manual cutting stations with one automated machine immediately reduces payroll. Furthermore, the massive reduction in material waste and rework accelerates your financial recovery significantly.
