Have you ever wondered why some CNC machining projects seem straightforward, while others hit unexpected size barriers? Or why your ideal 3 axis CNC router might not be the best fit for every job? Understanding CNC machining size limitations is key to unlocking your manufacturing potential and avoiding costly delays.
In this post, we’ll explore everything about size constraints in CNC machining. You’ll learn how machine types, especially 3 axis CNC routers, affect what you can produce. We’ll dive into factors like workspace dimensions, material sizes, and technical trade-offs. Plus, we’ll cover how size influences precision, efficiency, and your bottom line.
Whether you’re a business looking to optimize production or an engineer designing parts, this guide breaks down CNC machining size limitations clearly. You’ll walk away confident in choosing the right equipment and setup for your manufacturing needs.
Size limitations in CNC machining stem mainly from the physical capabilities of the machines and tooling. These include the travel distances along the axes, spindle reach, and work holding constraints.
| Factor | Description |
|---|---|
| Work Envelope | Maximum size the machine can move tools and workpieces in X, Y, and Z directions |
| Tool Reach & Length | Limitations on cutting tools’ length affecting depth and access to complex geometries |
| Fixture Size & Capacity | Size and strength of clamps and fixtures holding the material in place during machining |
| Machine Rigidity | Larger machines may face rigidity challenges impacting precision, especially at outer travel ends |
| Material Size | Raw stock size availability and handling constraints affect maximum part dimensions |

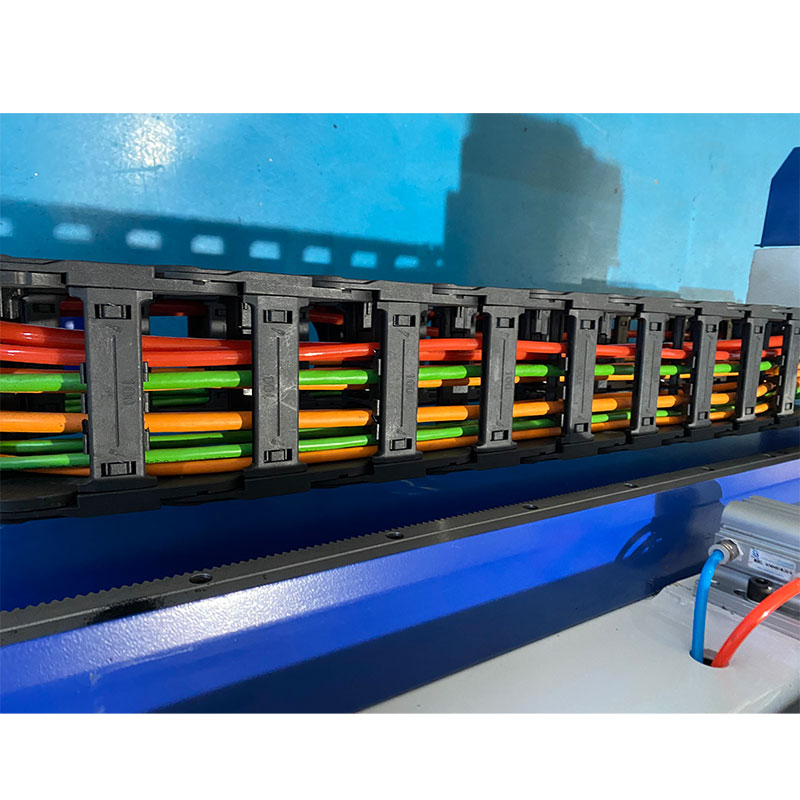

The popular 3 axis CNC router typically operates with three linear axes (X, Y, and Z). Its size limitations depend on:
Travel distances: Standard routers might offer anywhere from 600mm x 900mm to over 2000mm x 3000mm work areas.
Z-axis clearance: Usually limited to a few hundred millimeters, impacting maximum part height.
Fixed tool orientation: Because the tool only moves linearly, large or complex parts may require repositioning or multiple setups.
This makes 3 axis CNC routers ideal for medium-sized, simpler components but restrictive for very large or complex parts. The size of your router directly limits the size of the part you can produce in one operation.
While bigger machines provide more space, they also introduce new challenges:
Reduced rigidity: Longer travel distances can cause vibrations and deflections, hurting precision.
Slower feed rates: Large machines often move more slowly to maintain accuracy, impacting throughput.
Complex setups: Handling large materials demands more elaborate fixturing and safety measures.
Conversely, a smaller 3 axis CNC router offers:
Greater stiffness and stability
Faster cycle times for small to medium parts
Lower operational costs
Choosing the right size means balancing part dimensions with these factors.
Material size often dictates the maximum workable size on any CNC machine. For example:
Large aluminum sheets or wooden boards come in standard sizes (e.g., 4' x 8' sheets).
Custom oversized stock may be expensive or difficult to source.
Understanding your material limits helps avoid machining jobs that require multiple joins or assemblies.
Complex shapes on large parts may push the limits of your 3 axis CNC router’s Z-axis or workspace. For example:
Deep pockets or tall features may be impossible with short Z travel.
Wide, flat parts need enough XY travel without repositioning.
Careful design and planning can help reduce these issues, or indicate when a higher-axis machine is necessary.
Even with size limits, businesses can optimize production:
Breaking large parts into smaller sections machined separately and then assembled.
Repositioning the workpiece manually to machine different sections, though this can reduce accuracy.
When size or complexity exceeds 3 axis CNC router limits, options include:
4 axis or 5 axis CNC machines for additional rotation and reach
Larger gantry-style routers with extended travel
Automated material handling to speed up large workpiece processing
| Factor | Importance |
|---|---|
| Work Area (X, Y) | Must accommodate largest part footprint without repositioning |
| Z-Axis Travel | Defines maximum thickness or height of parts |
| Spindle Power | Influences ability to cut through thick materials efficiently |
| Table Load Capacity | Determines maximum raw material weight machine can safely handle |
| Precision & Repeatability | Critical for multi-setup machining of large or complex parts |
3 axis CNC routers excel in producing:
Flat panels and signboards
Furniture components
Prototypes and low-to-mid volume parts
Basic molds and fixtures
However, as part size and complexity grow, limitations become apparent:
Multiple setups increase risk of misalignment
Lack of rotational axes restricts tool access to intricate features
Size constraints limit the ability to machine thick or very tall parts in one go
Advanced automation tools like robotic loading and unloading can streamline handling of large parts, partially offsetting size challenges.
Machines combining additive and subtractive methods allow building large parts in sections, reducing raw stock size constraints.
Advanced CAD/CAM software can simulate multi-setup machining to optimize toolpaths and reduce errors caused by repositioning large parts.
| Router Size (X x Y x Z mm) | Typical Use Case | Advantages | Limitations |
|---|---|---|---|
| 600 x 900 x 150 | Small prototypes, signage | Compact, fast setup | Limited part size, low Z height |
| 1200 x 2400 x 200 | Furniture panels, medium parts | Balanced size and precision | May require multi-setup for large parts |
| 2000 x 3000 x 300 | Large wooden components, molds | Large work envelope | Increased cost, slower cycles |
CNC machining size limitations are fundamental to effective manufacturing planning. Your choice of 3 axis CNC router must align with part size, material availability, and precision requirements. While bigger machines offer more space, they can introduce challenges in rigidity and cost. Strategic use of multi-setup machining and emerging automation can help overcome these barriers. Understanding these trade-offs empowers you to optimize production and deliver quality parts efficiently.
For businesses seeking reliable and versatile 3 axis CNC routers, DWD offers tailored solutions designed to match your size and precision needs. Explore DWD’s product range to find the perfect fit for your manufacturing goals.
A: The maximum part size depends on the router's work envelope in X, Y, and Z axes. Common sizes range from small (600 x 900 mm) to large (2000 x 3000 mm). Always check the specific machine specs.
A: Consider multi-setup machining with repositioning, modular part design for assembly, or upgrading to machines with larger work areas or additional axes.
A: Larger machines may experience reduced rigidity, leading to lower precision. Proper machine design and maintenance help mitigate this.
A: They handle simpler geometries well but may struggle with intricate features that require rotation or multi-angle access, where 5 axis machines excel.
A: The raw material size can limit the maximum part size, especially if oversized stock is unavailable or costly. Planning material procurement is key.
